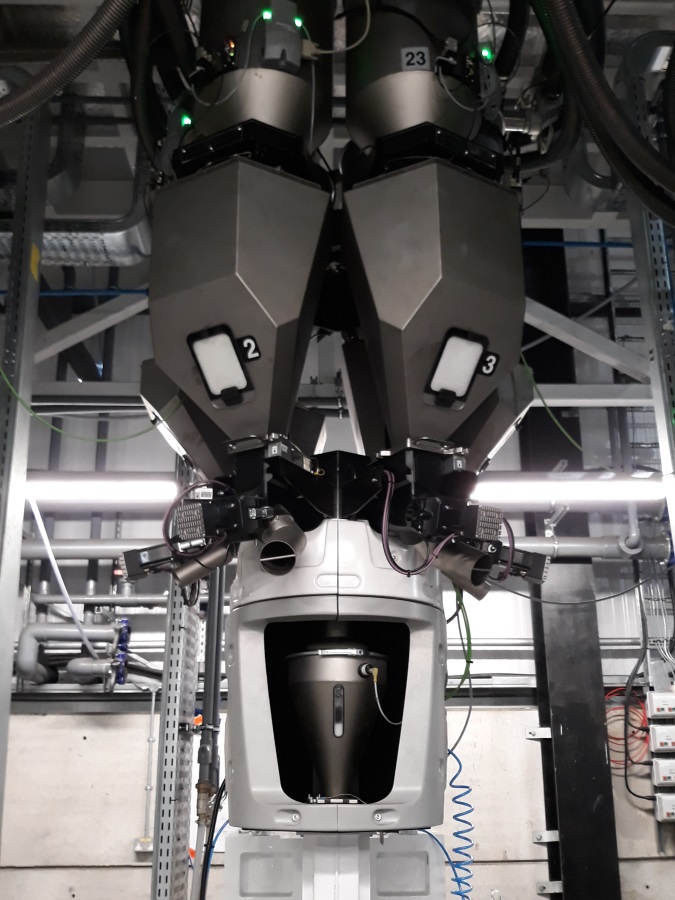

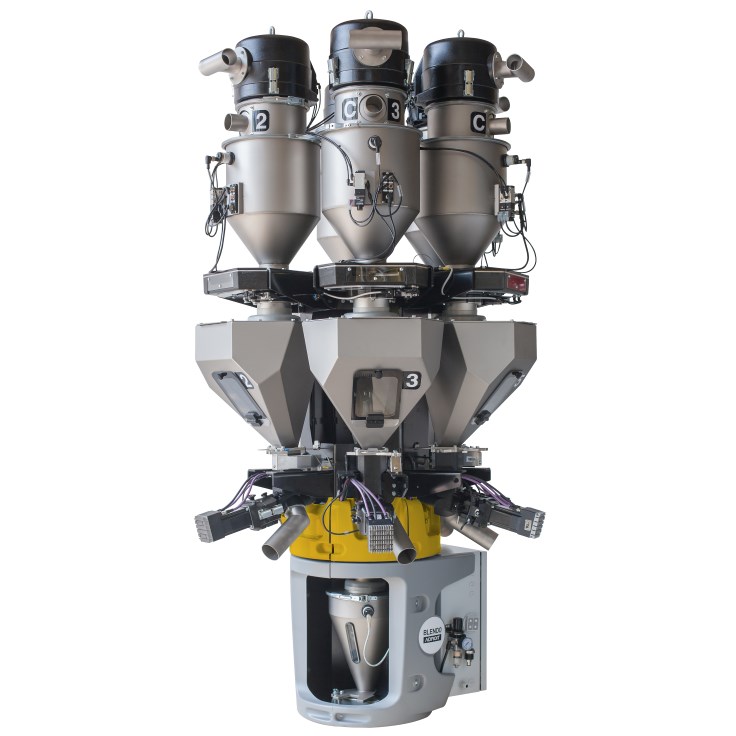

Blendo Adroit – Continuous gravimetric blender and extrusion control

BLENDO ADROIT 1
freccia

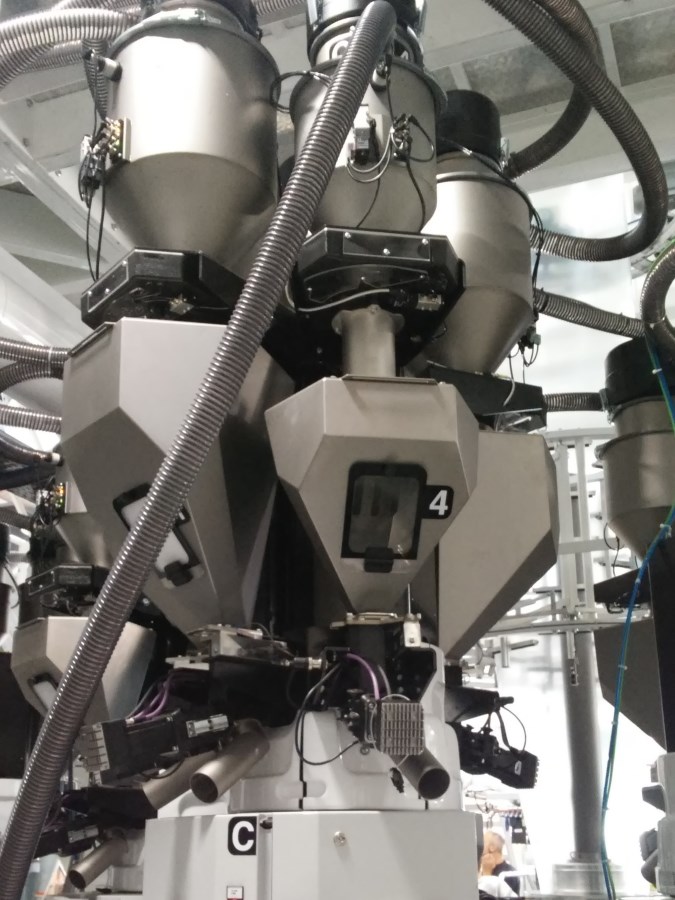

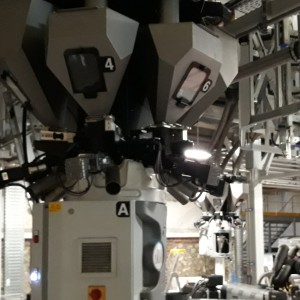

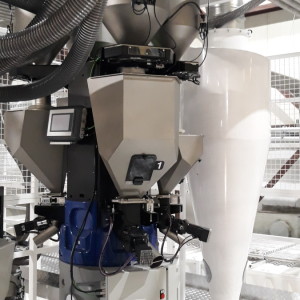

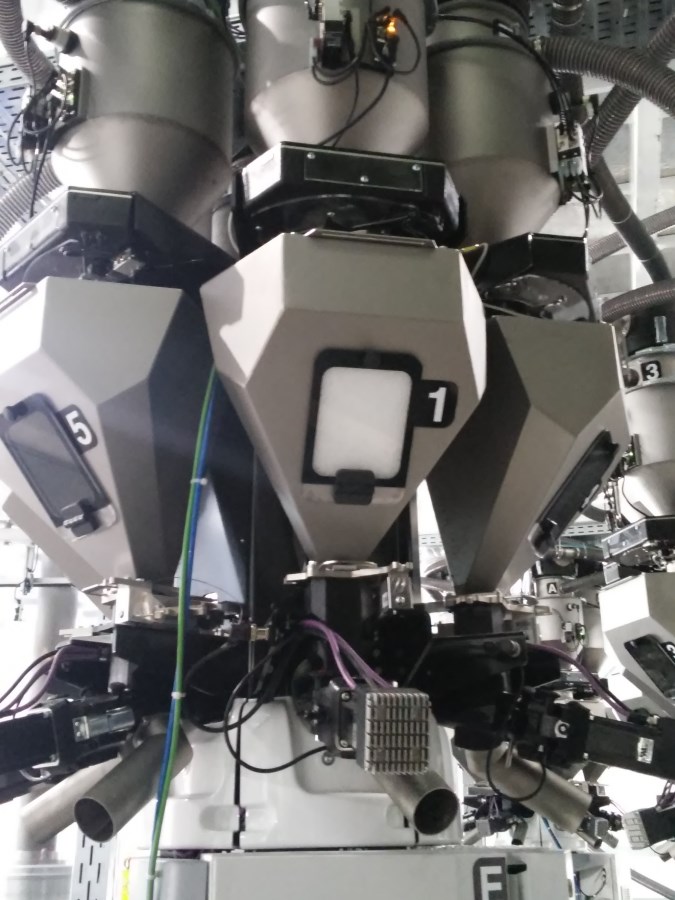

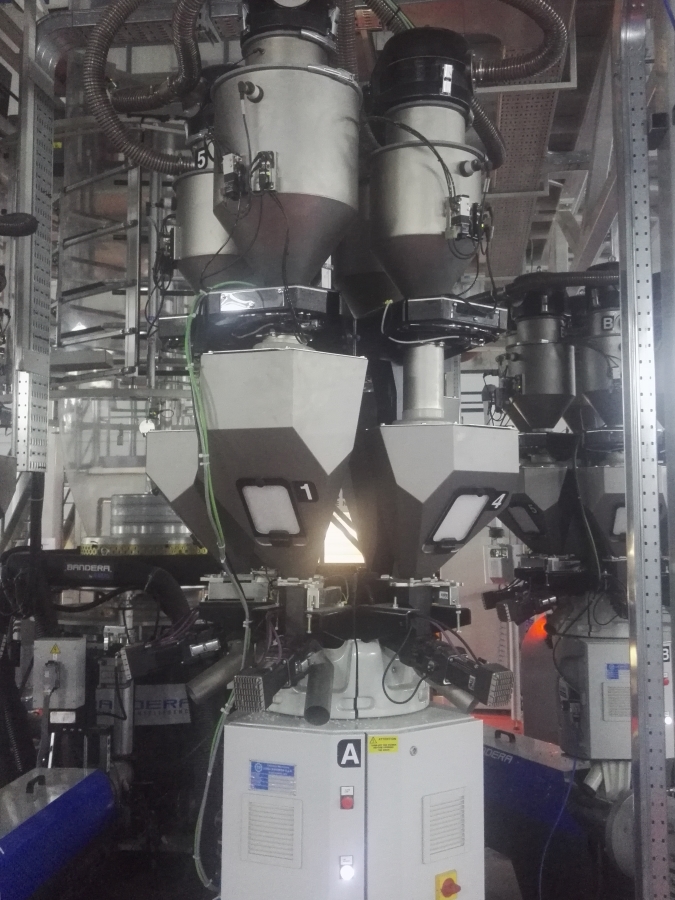

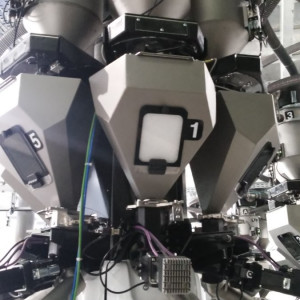

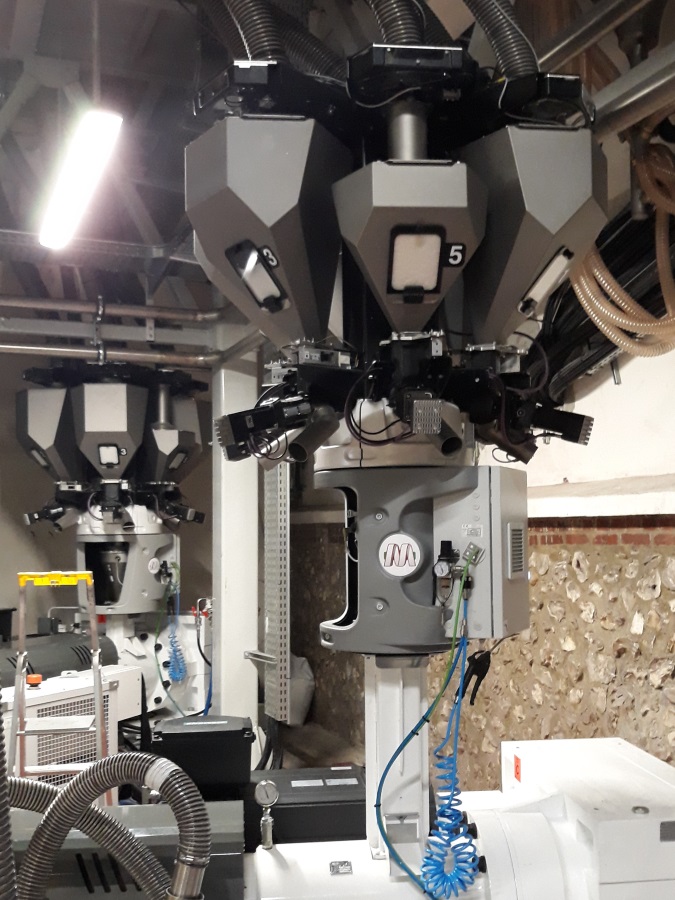

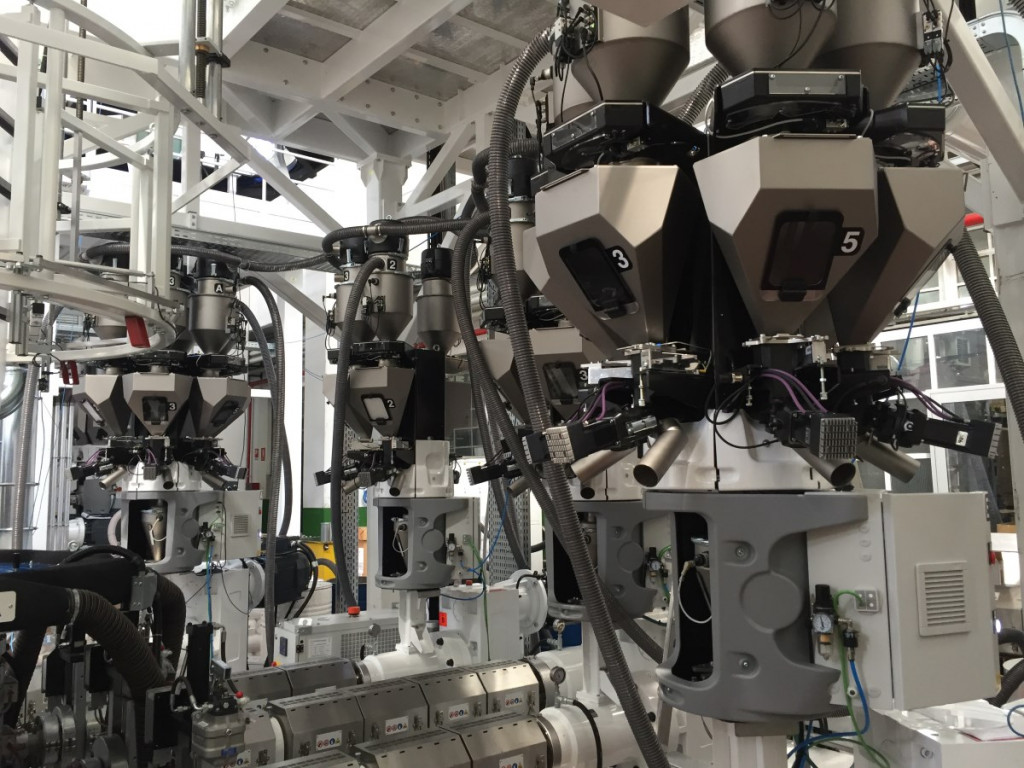

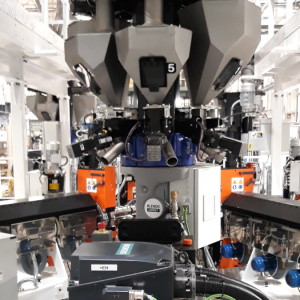

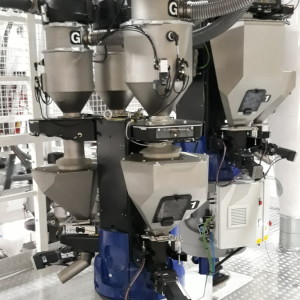

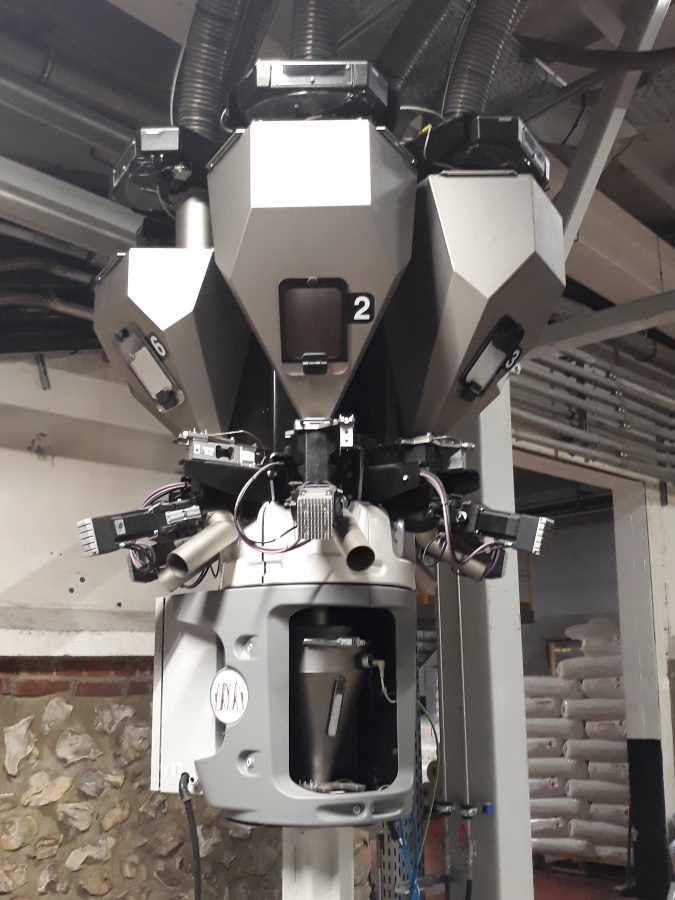

Designed to blend pellets in extrusion processes where dosing accuracy and a homogeneous dispersion of additives are strictly required. Unaffected by vibrations, BLENDO ADROIT has been designed to be easily mounted directly on the extruder throat to replace the conventional feed hopper or for mezzanine mounting. Available from 2 to 6 ingredients and with throughput up to 200, 400, 800 and 1300 kg/h. Its modular structure allows to increase the number of dosing stations even after the installation.

MORE INFORMATION

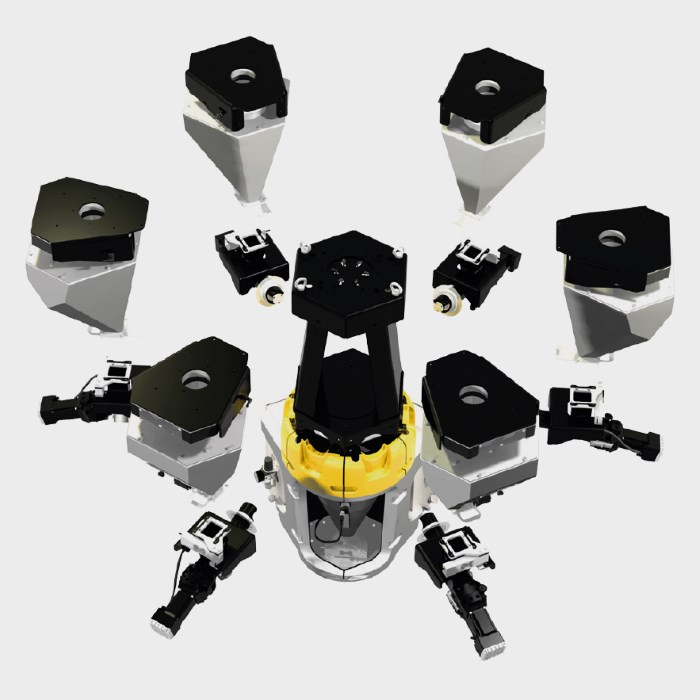

BLENDO ADROIT MODULARITY
  • Full modular construction with 2, 3, 4, 5 or 6 ingredients available and DIY modularity.

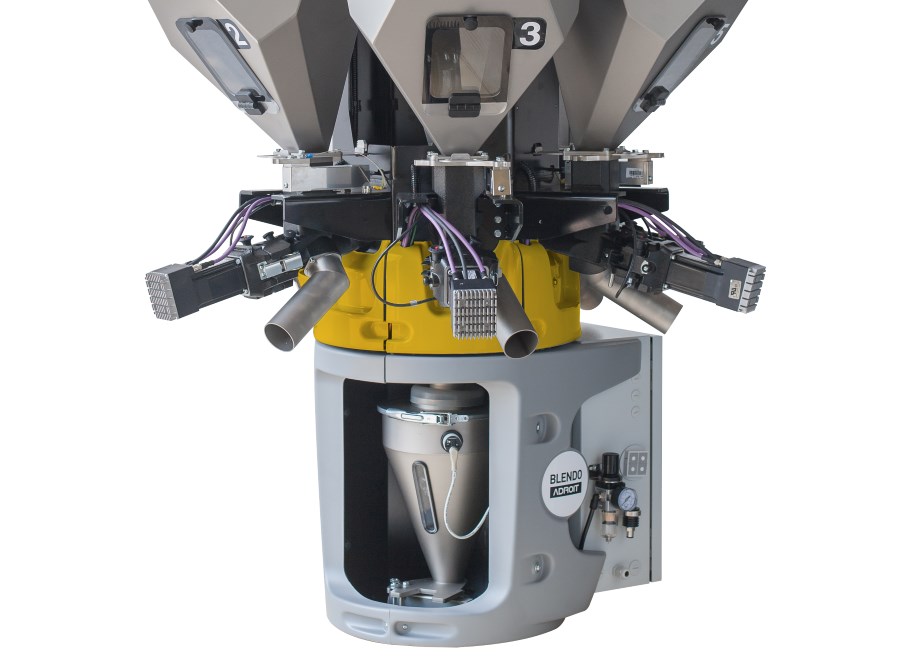

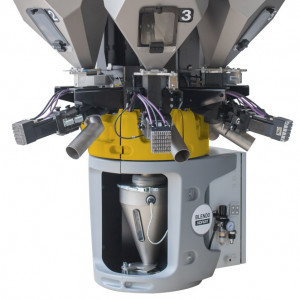

  • Integral weigh downcomer hopper for extruder demand or gravimetric throughput control.
  • Load cell to sense variations in weight (no ultrasonic or capacitive sensor).
BLENDO ADROIT CASCADE
  • A cascade mixer provides excellent additive dispersion, including ingredients with different bulk densities or granule size.

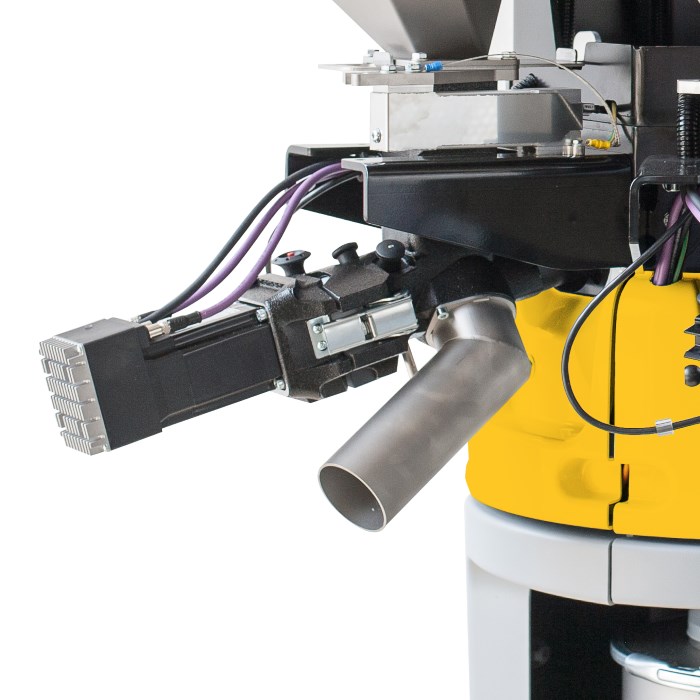

BLENDO ADROIT INCLINED SCREW

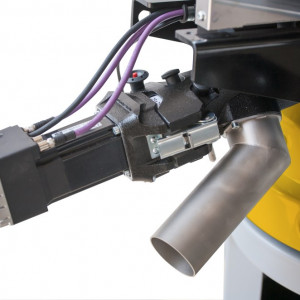

  • Inclined screw feeders to improve metering accuracy and to prevent undesired dribble. They are driven by brushless motors with a wide range of speed.

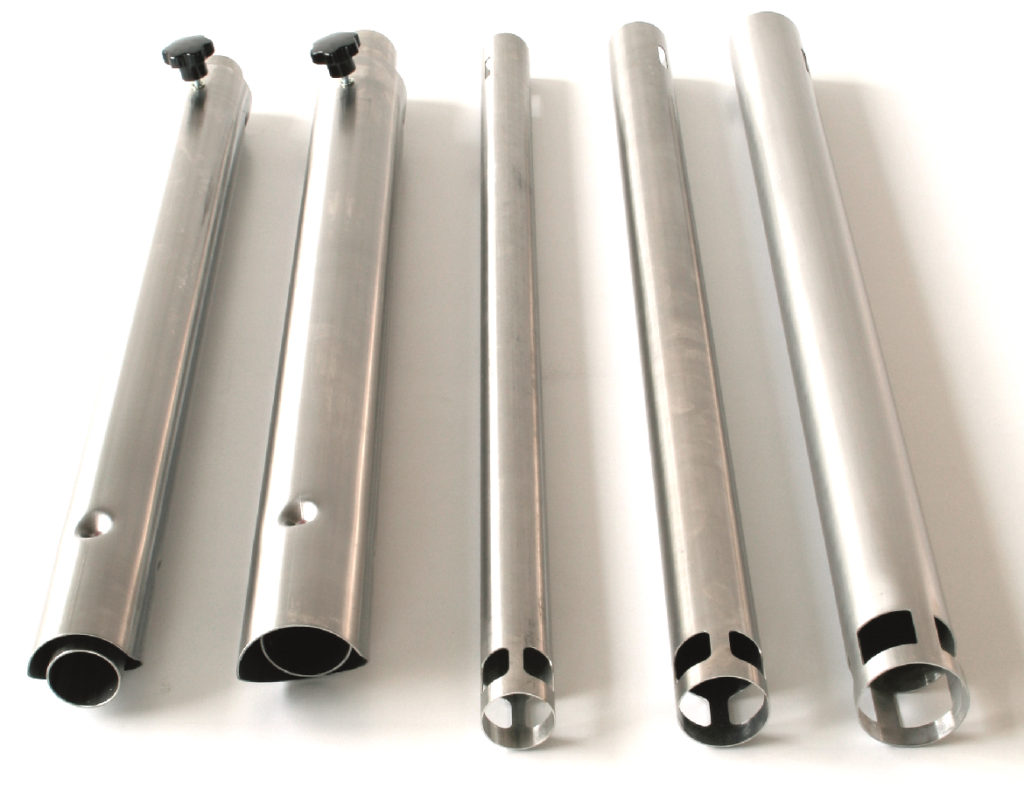

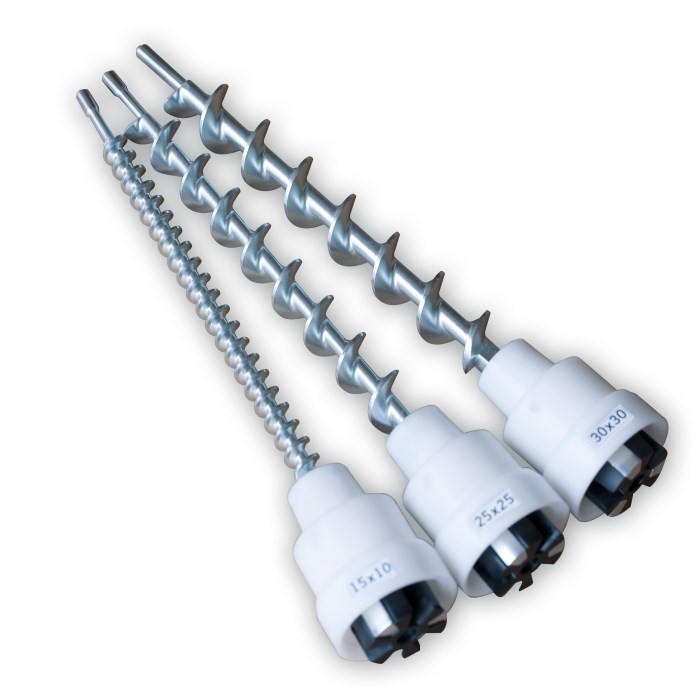

BLENDO ADROIT SCREWS
  • Auger screws suitable for granules or free-flowing powders, extended throughoput range.

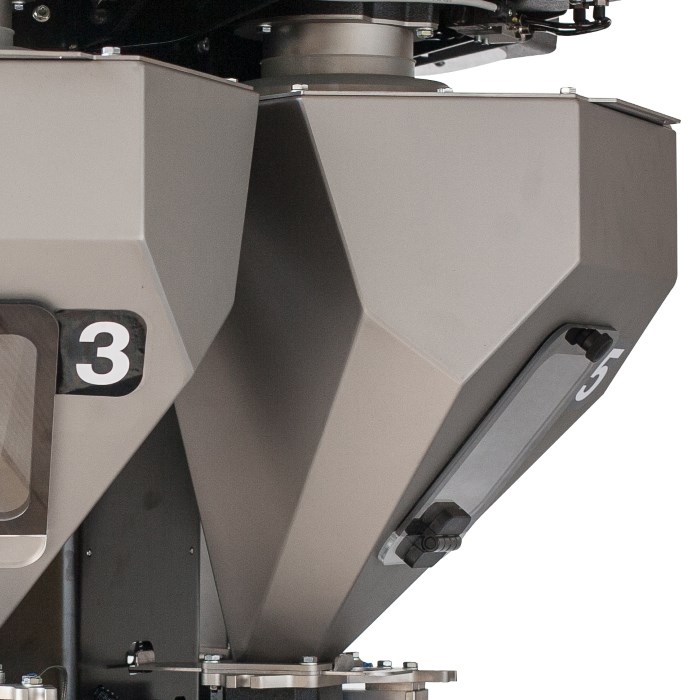

BLENDO ADROIT HOPPER
  • All parts that come into contact with the ingredients are made of satin stainless steel, or of food-grade materials or finishes.

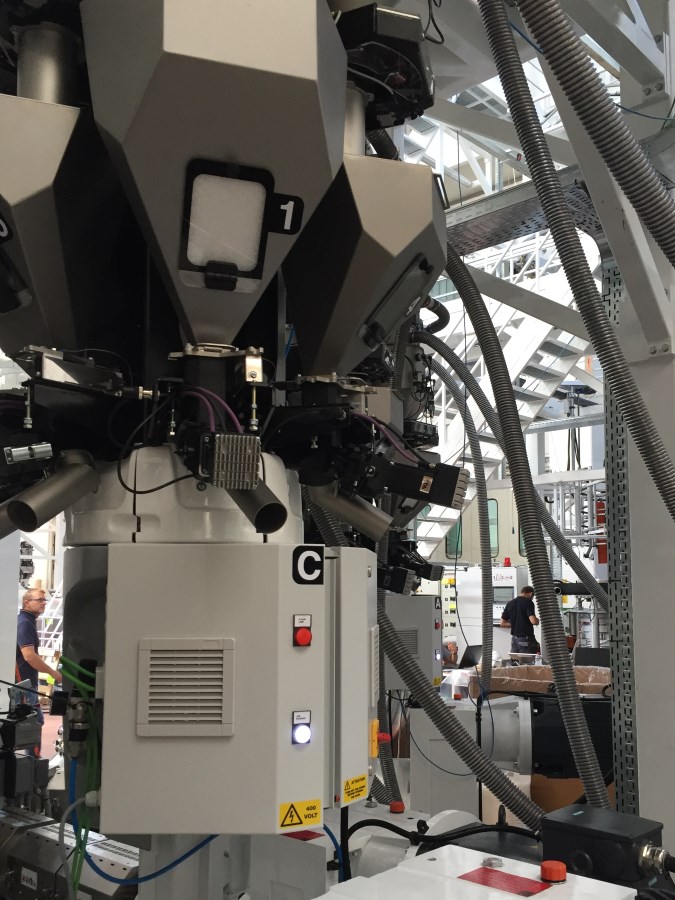

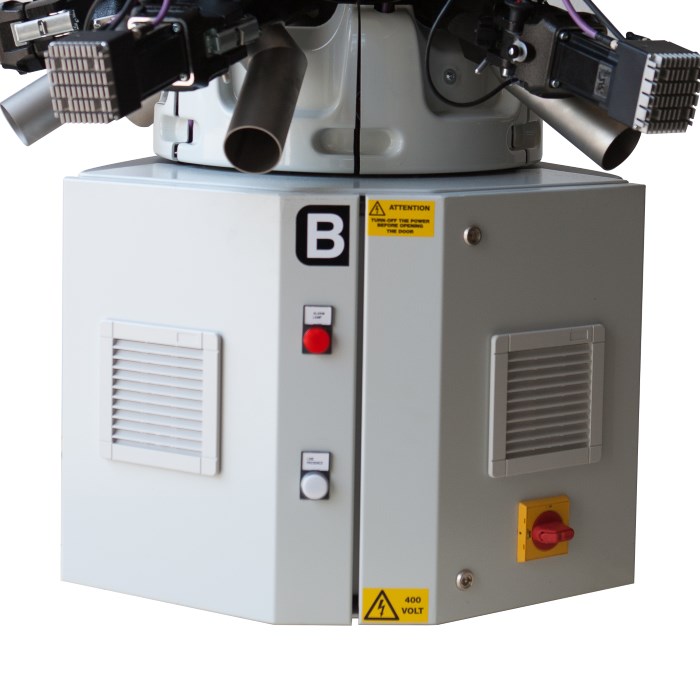

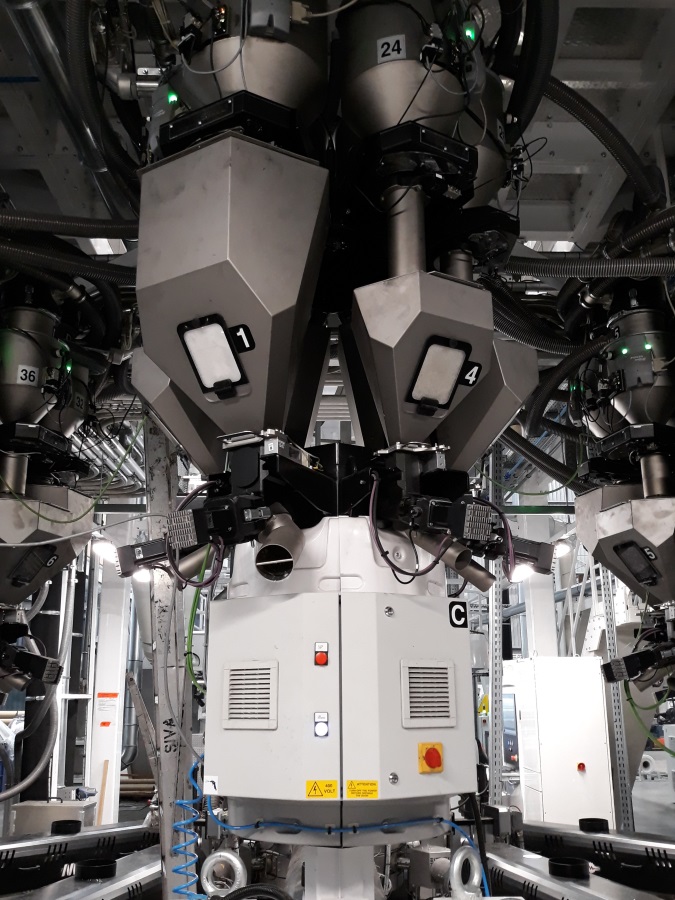

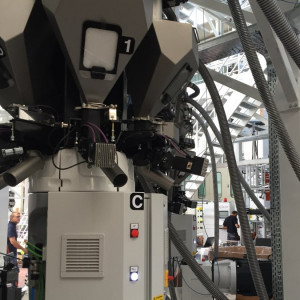

BLENDO ADROIT CABINET
  • The on-board control box does not require any floor space.

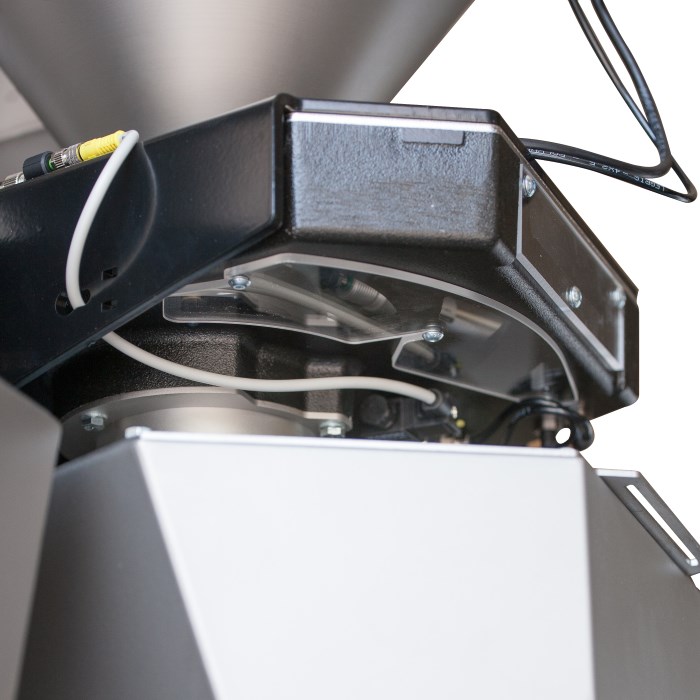

BLENDO ADROIT REFILL
  • Standard supplied integrated refill valve, rotative-slide gate type (patent pending).

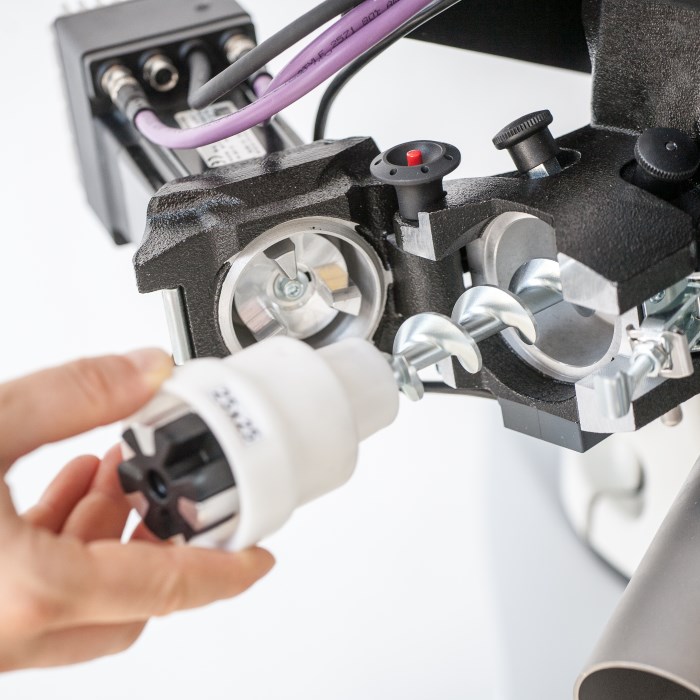

BLENDO ADROIT REMOVING SCREW
  • Easily accessible auger screws for quick and thorough cleaning, no tools required.

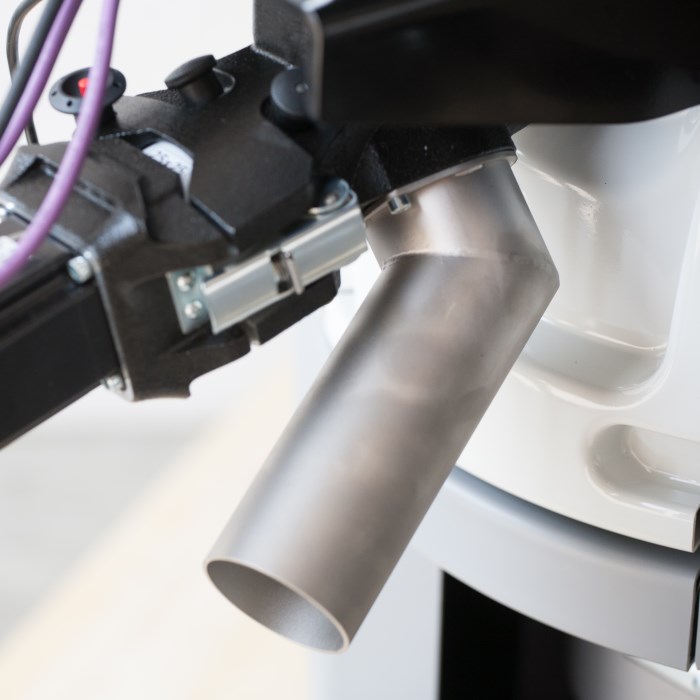

BLENDO ADROIT DRAIN SPOUT
  • Drain spout for easy and quick hopper emptying.
BLENDO ADROIT GATE
  • Manual slide gate for auger screw inspection without hopper emptying.

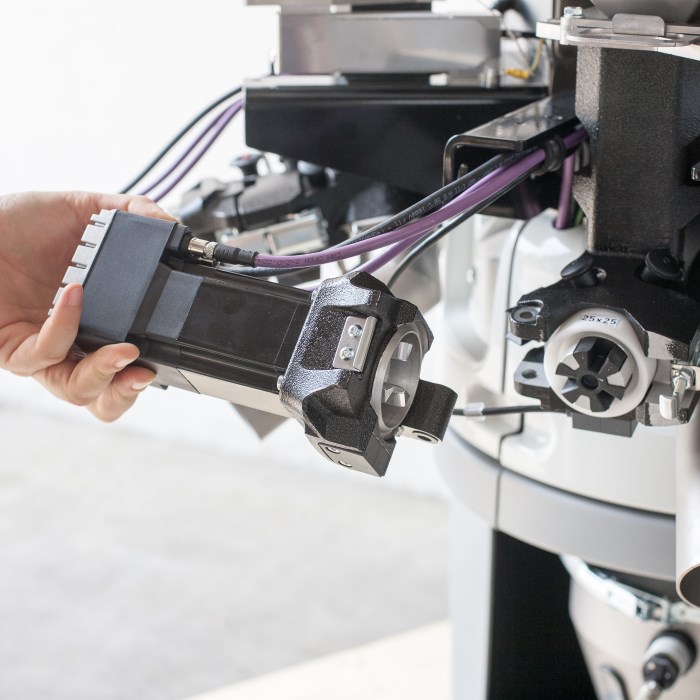

BLENDO ADROIT MOTOR REMOVAL
  • Practical and easy access to all components.

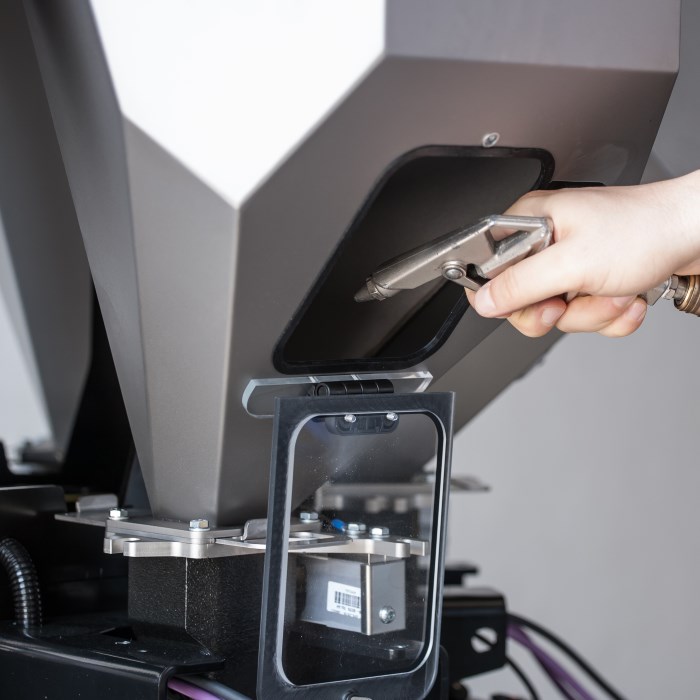

BLENDO ADROIT CLEANING WINDOW
  • Feed hoppers with wide cleaning window for visual level control and quick cleaning.

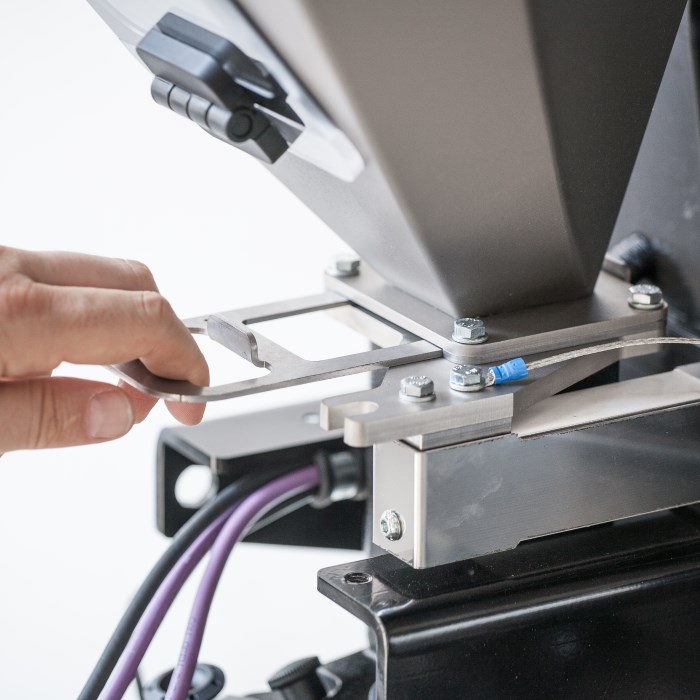

BLENDO ADROIT CALIBRATION WEIGHT
  • Standard weights kit for load cells calibration. Dedicated spots for placing the calibration weights, for the safety of the operators and easy of use.

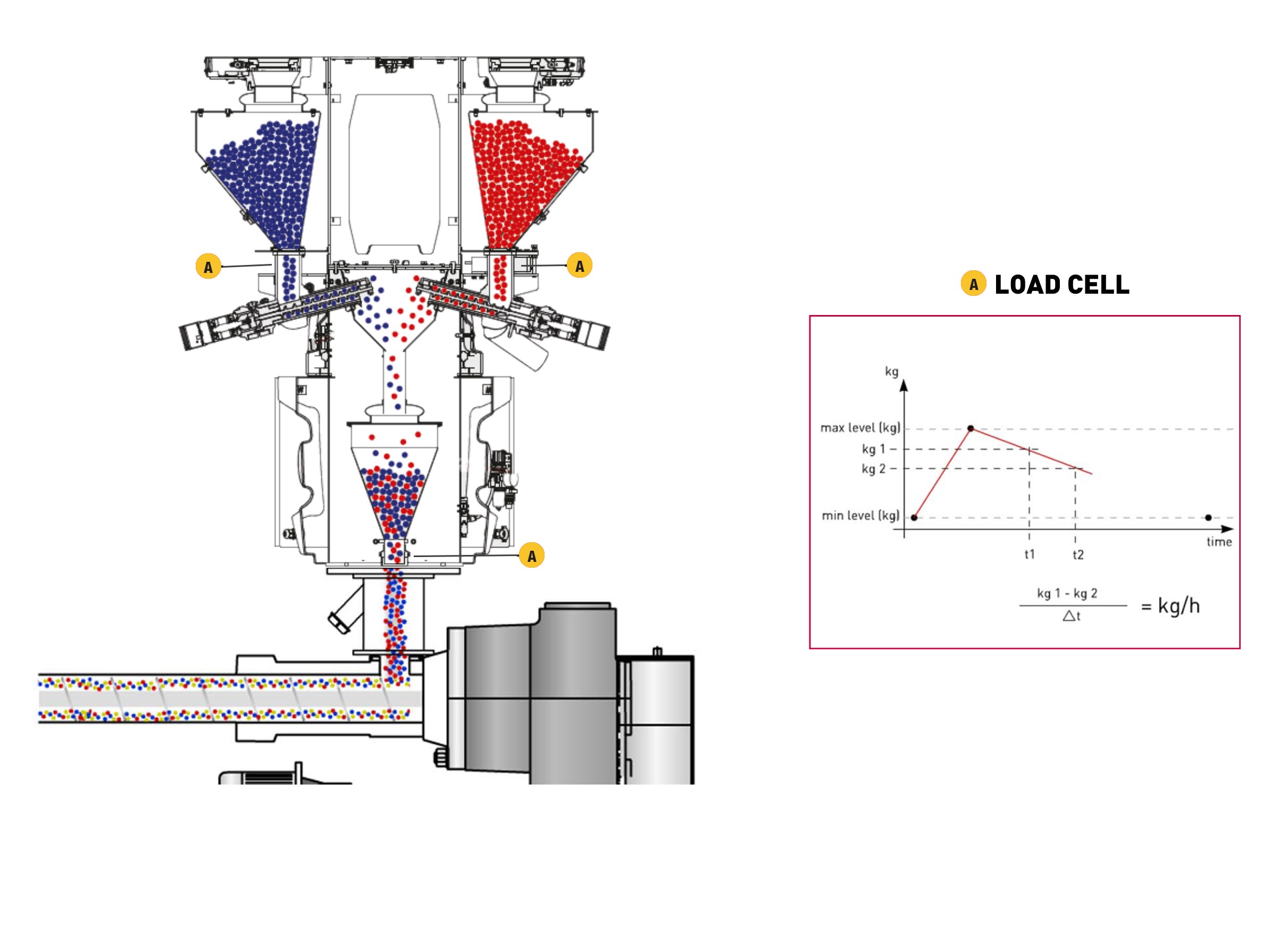

blendo adroit_schema_intro

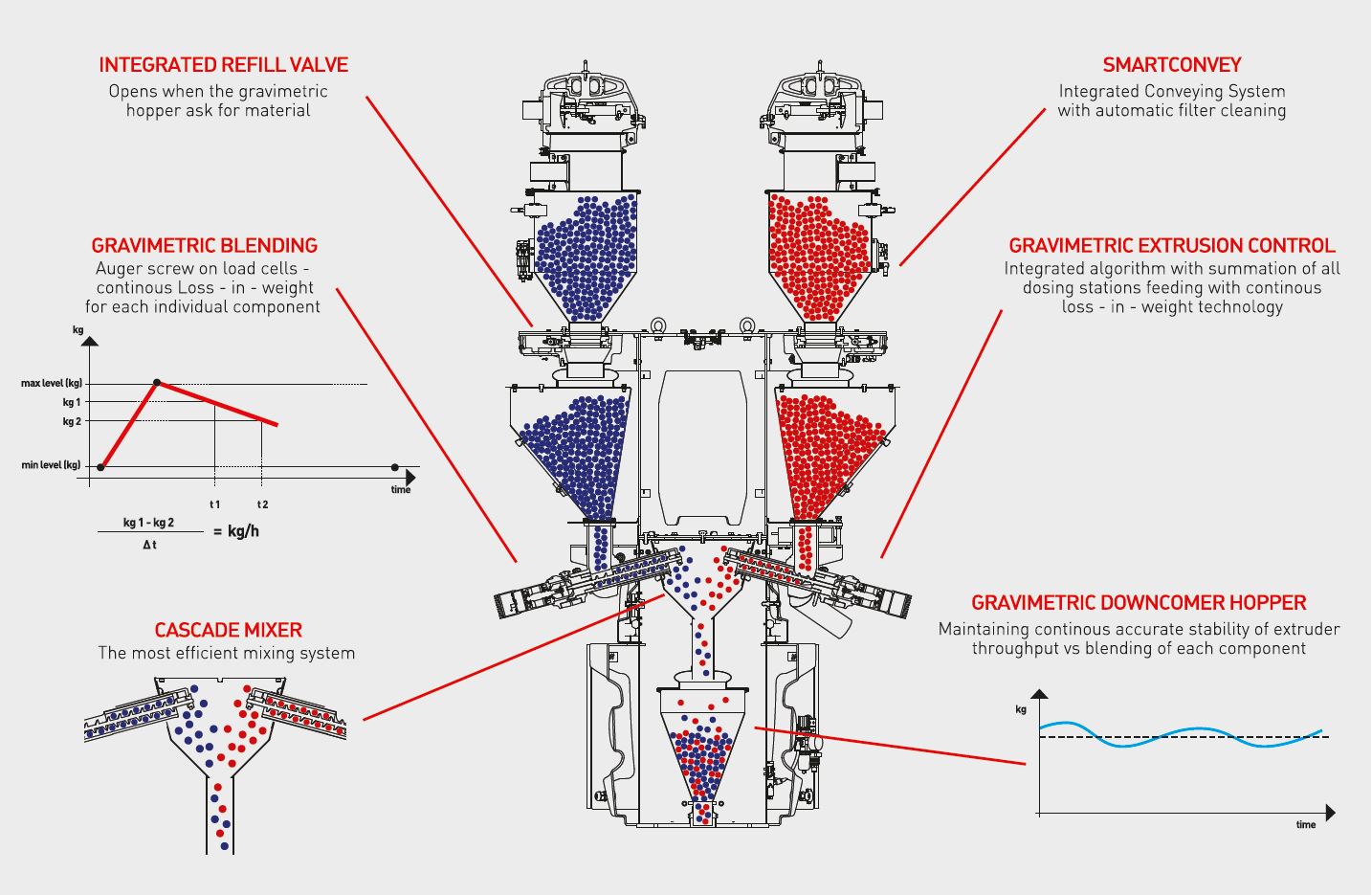

BLENDO ADROIT CONTINUOUS PRINCIPLE

CONTINUOUS BLENDER OPERATION

  • Precise continuous loss in weight control.
  • Weight loss of each ingredient is measured.
  • All ingredients are simultaneously metered through the auger directly into the integral weigh downcomer hopper, through the cascade mixer.
  • The weight of blended material in the downcomer hopper is continuously monitored to sense level variations caused by changes in extruder throughput or non-alignment between the feeders and extruder throughputs.
  • The feeders are individually controlled to achieve and maintain the preset blend ratios and to keep at the preset value the downcomer hopper level.
  • This means that the blending throughput is always aligned with that of the processing machine.

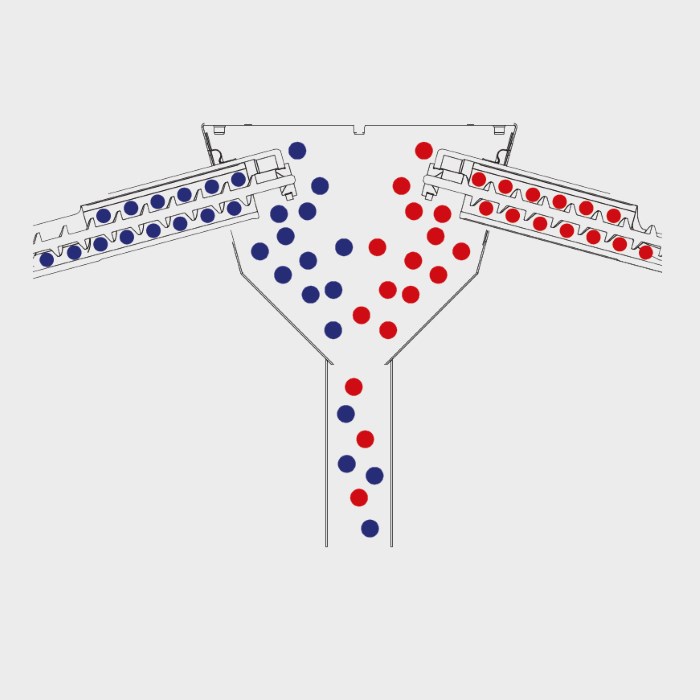

CASCADE MIXER ACTION

  • The ingredients are simultaneously metered in the right proportion directly into the cascade mixer where the different streams are mixed to form a homogenous blend with a perfect dispersion of additives.

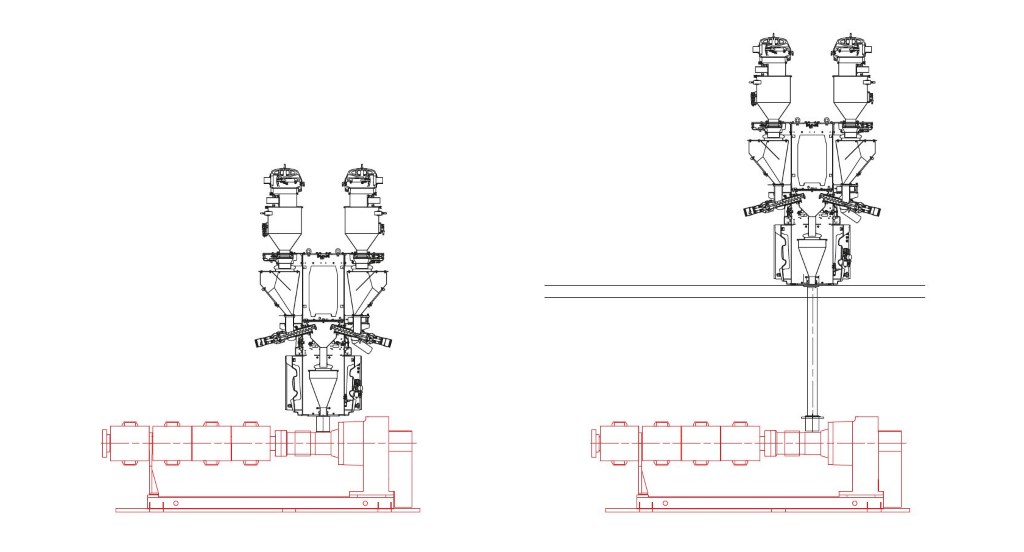

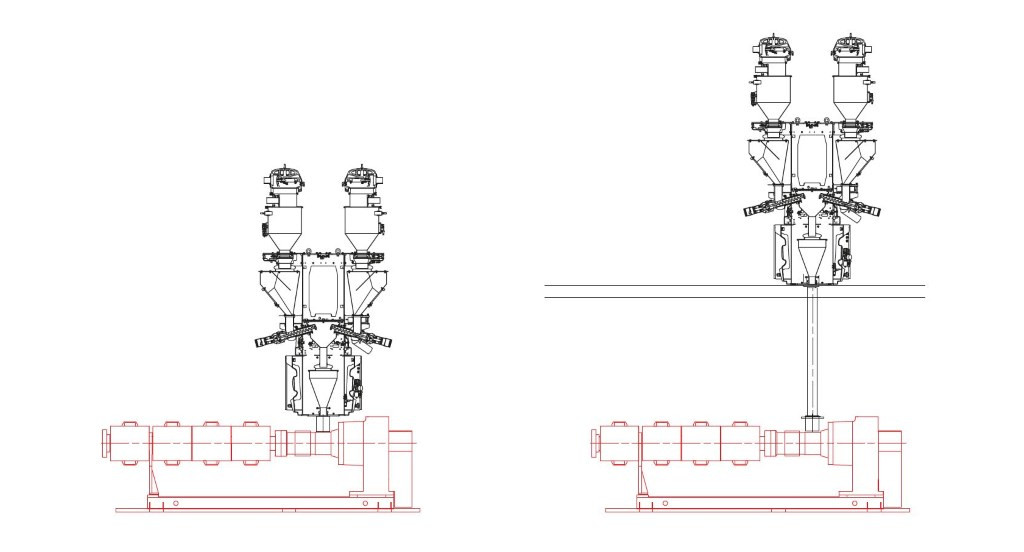

SCHEMA INSTALLAZIONE

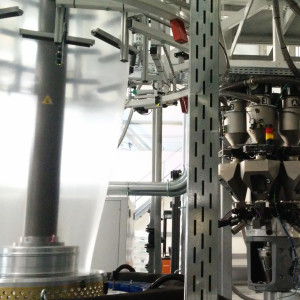

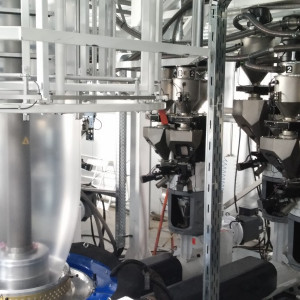

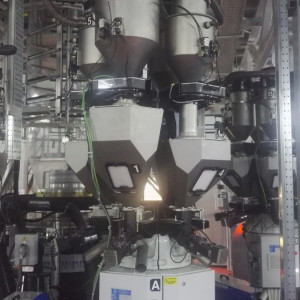

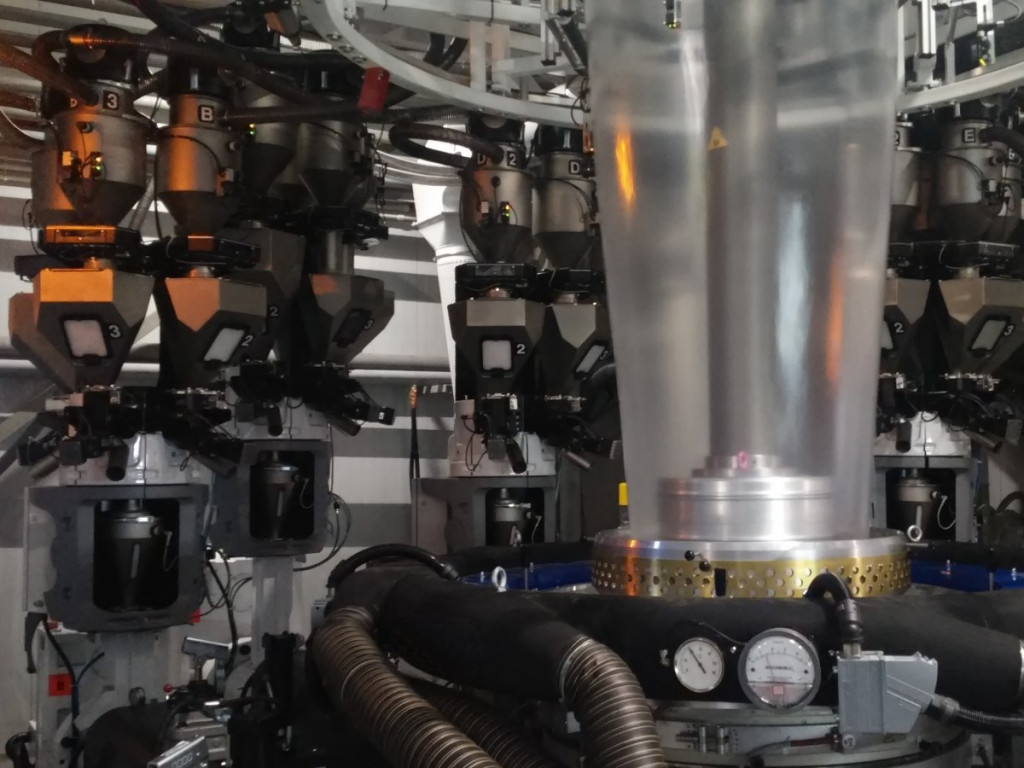

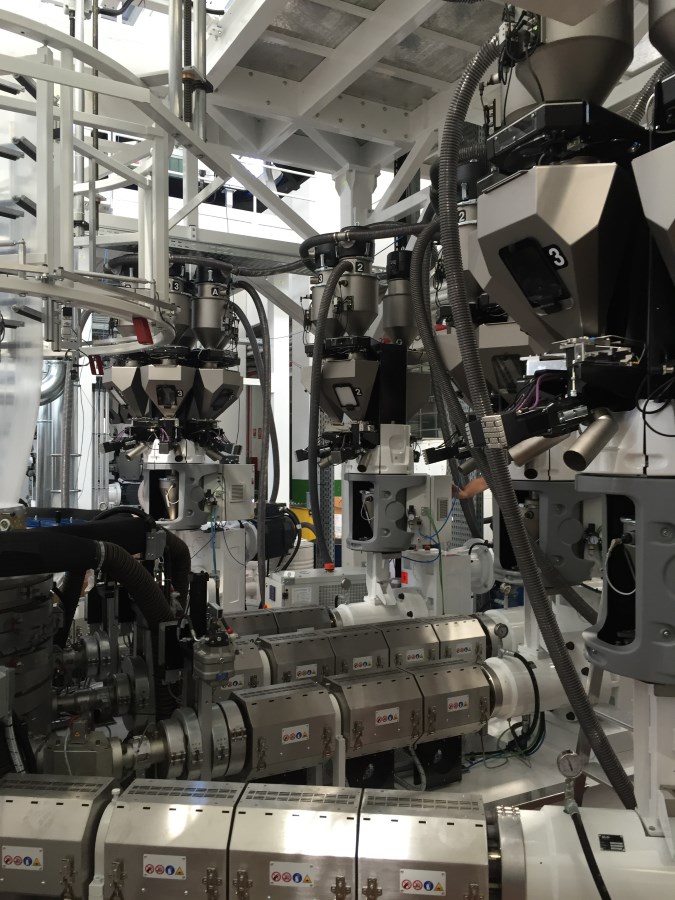

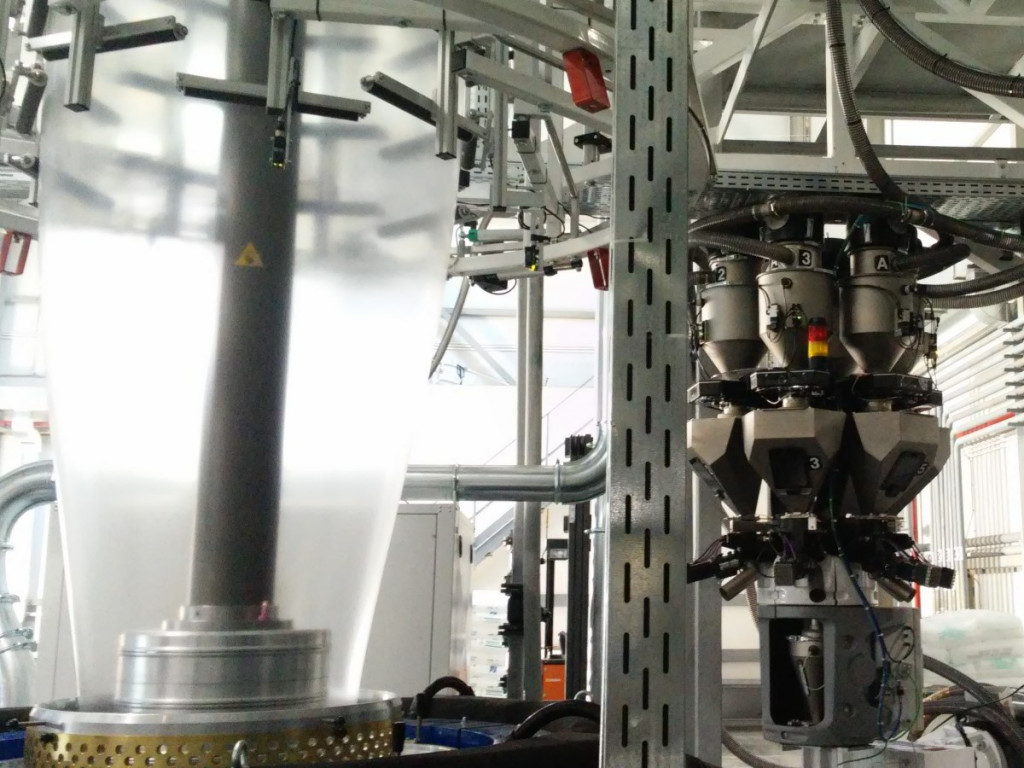

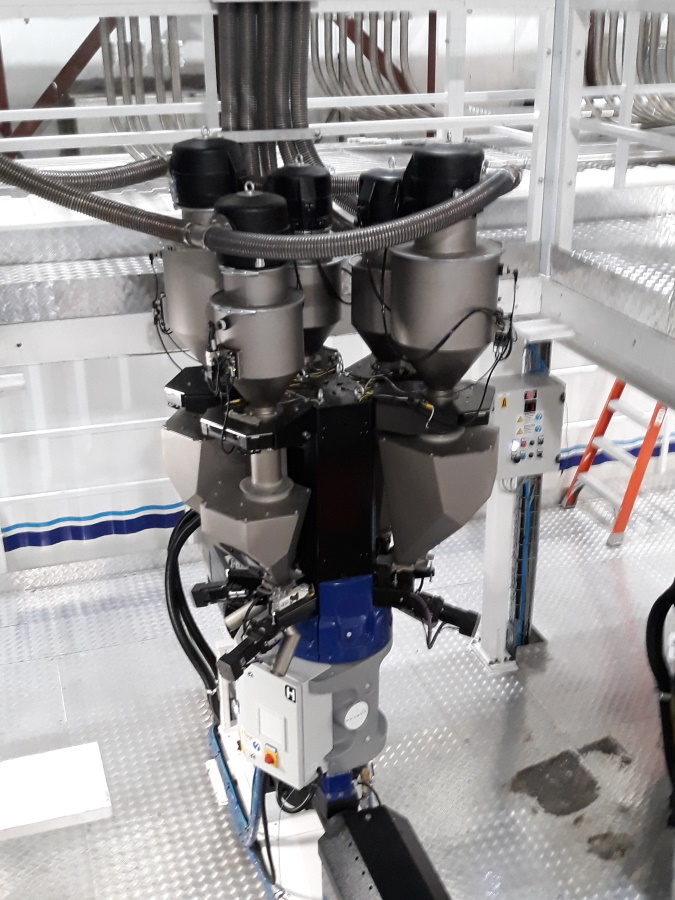

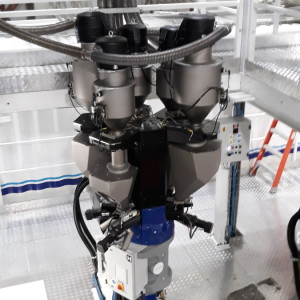

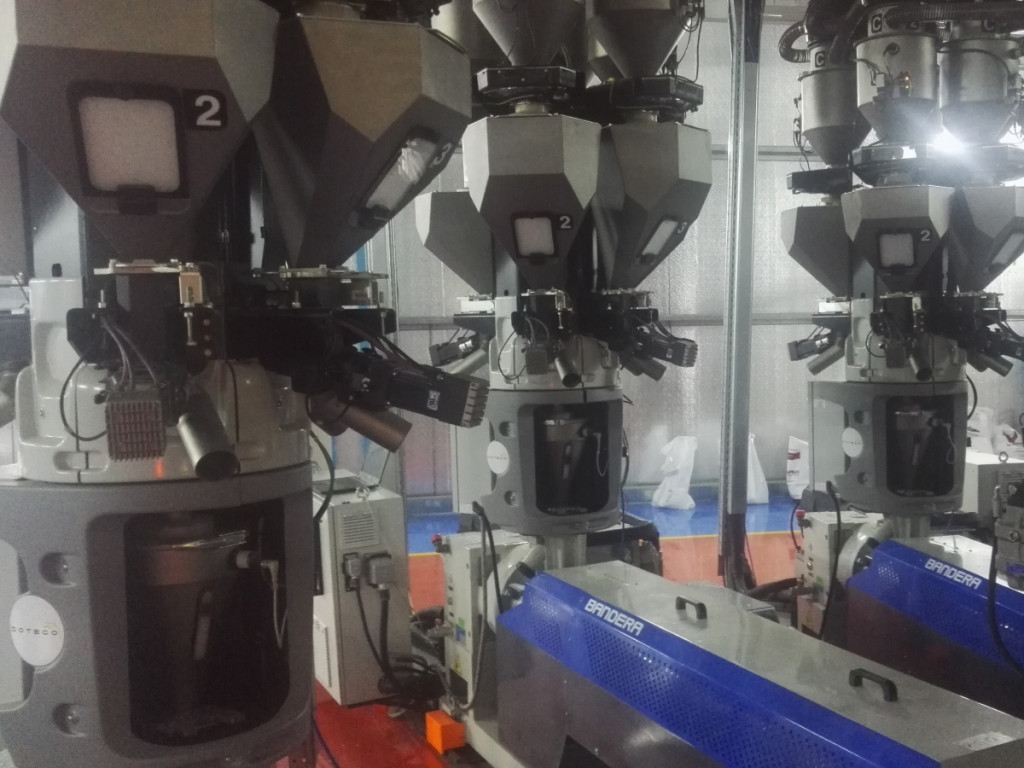

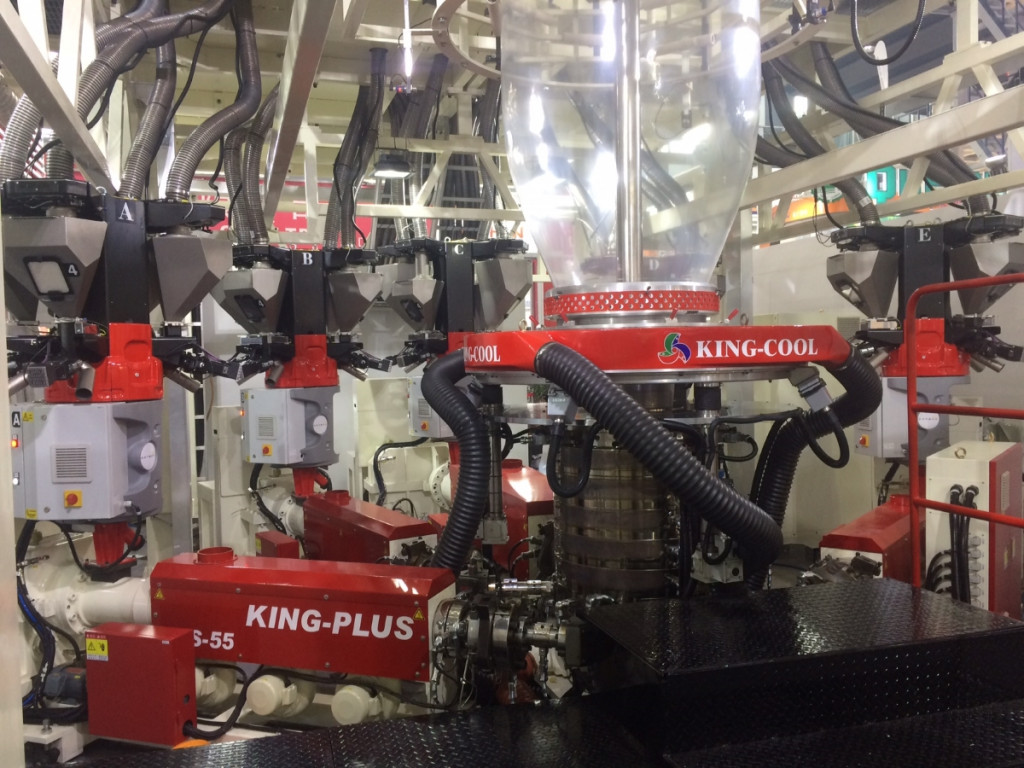

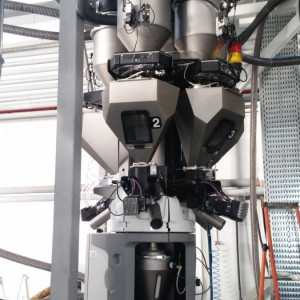

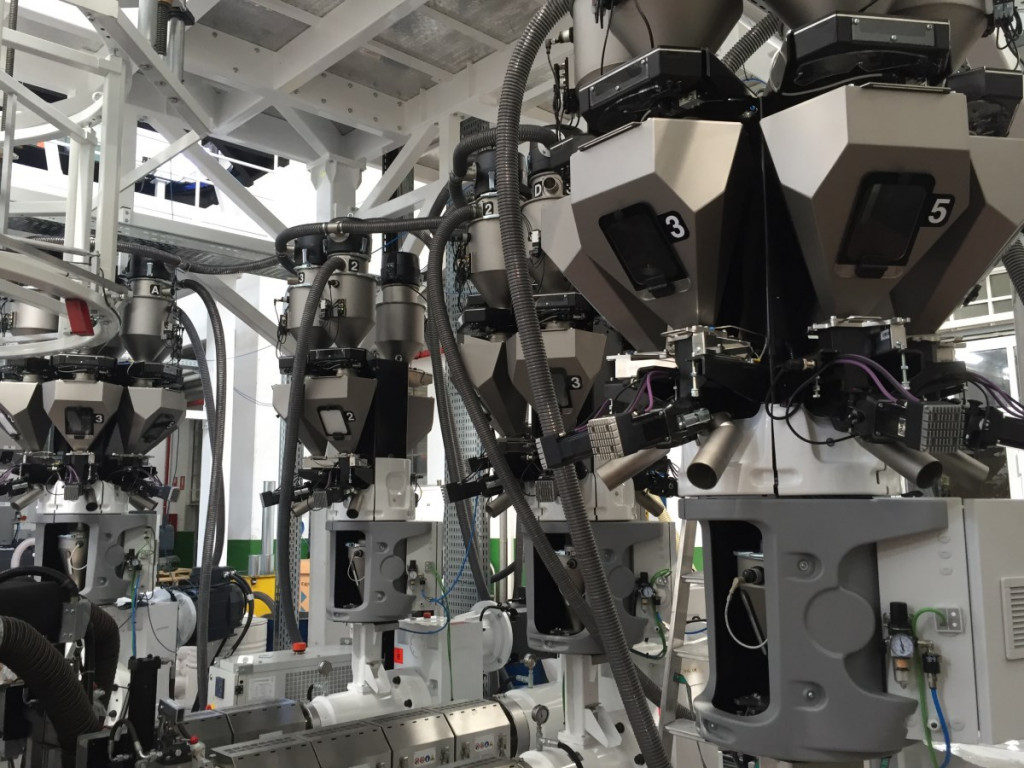

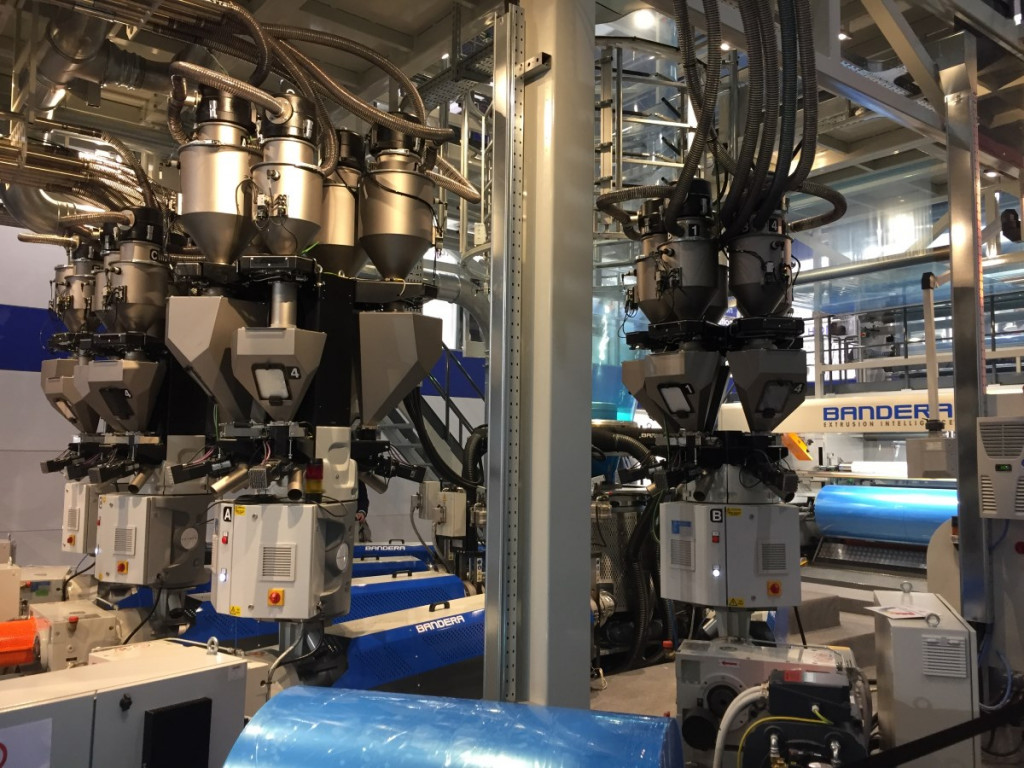

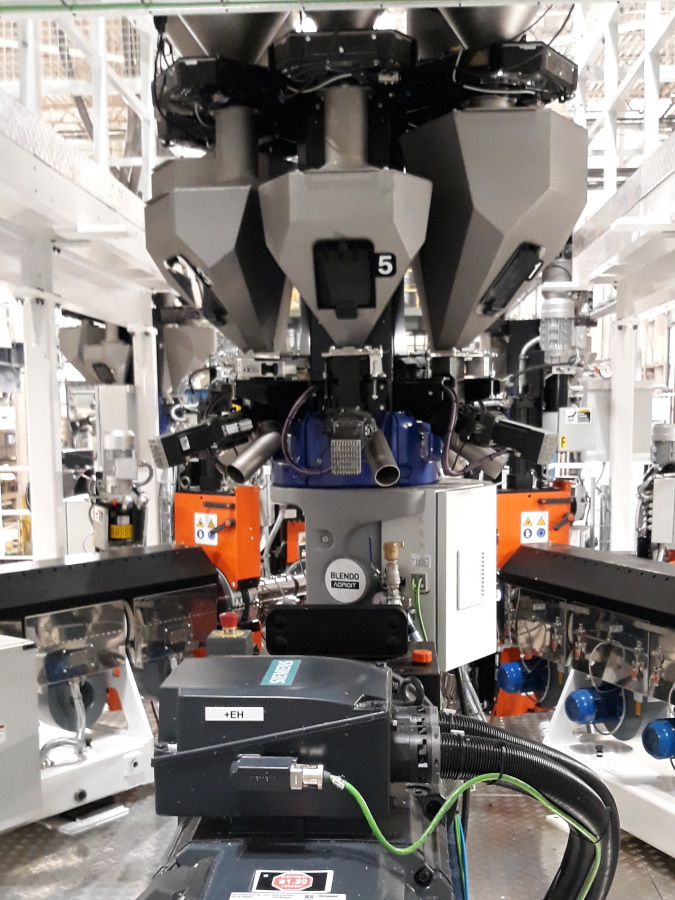

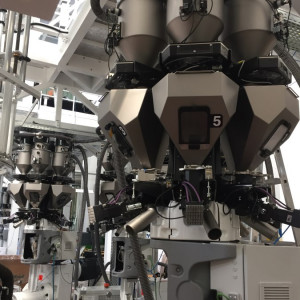

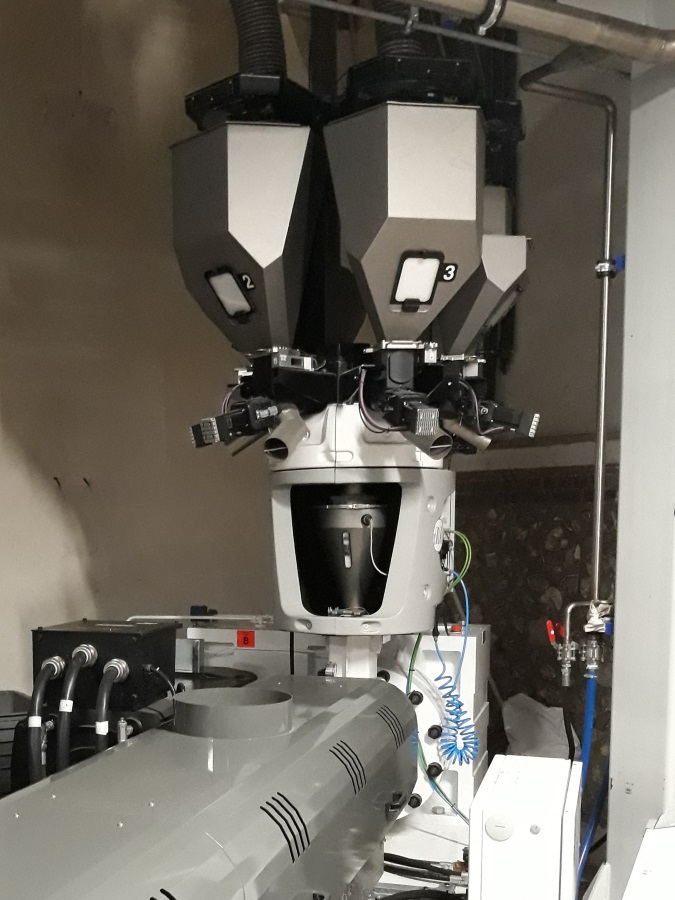

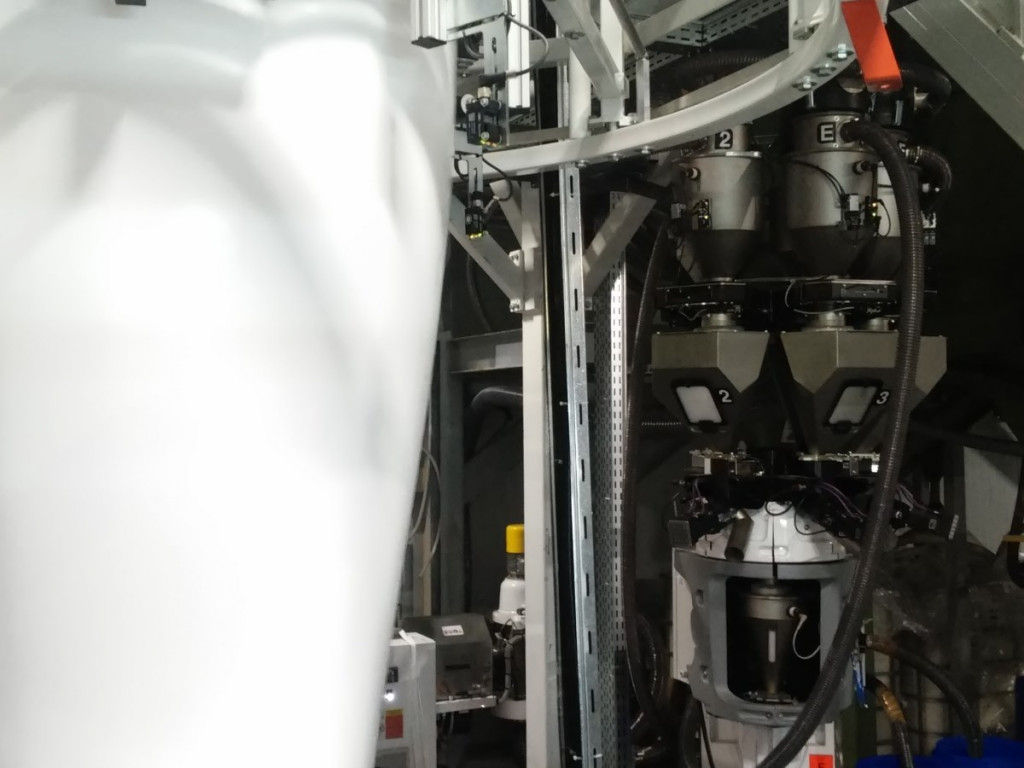

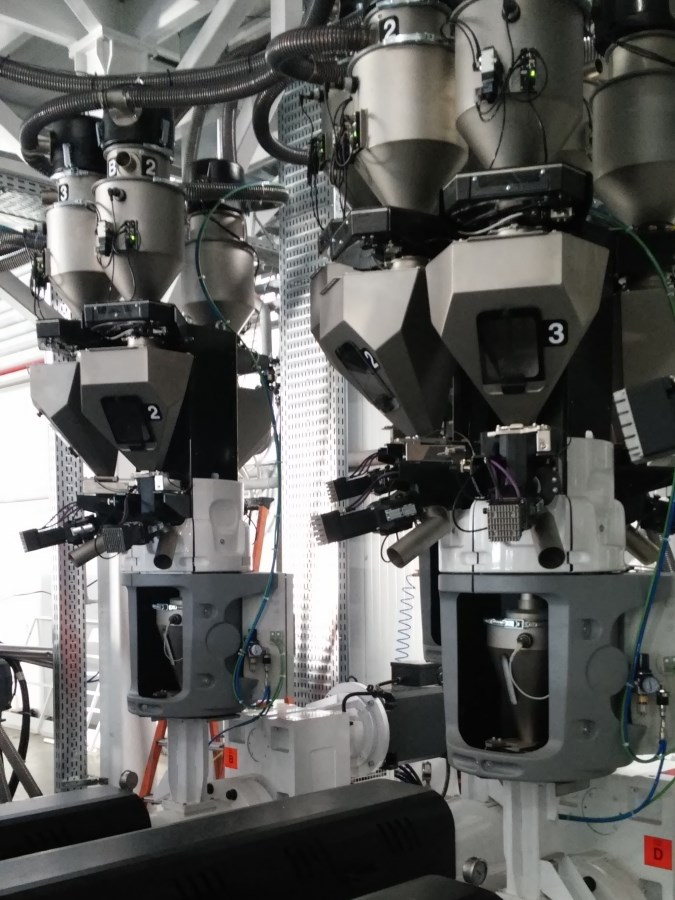

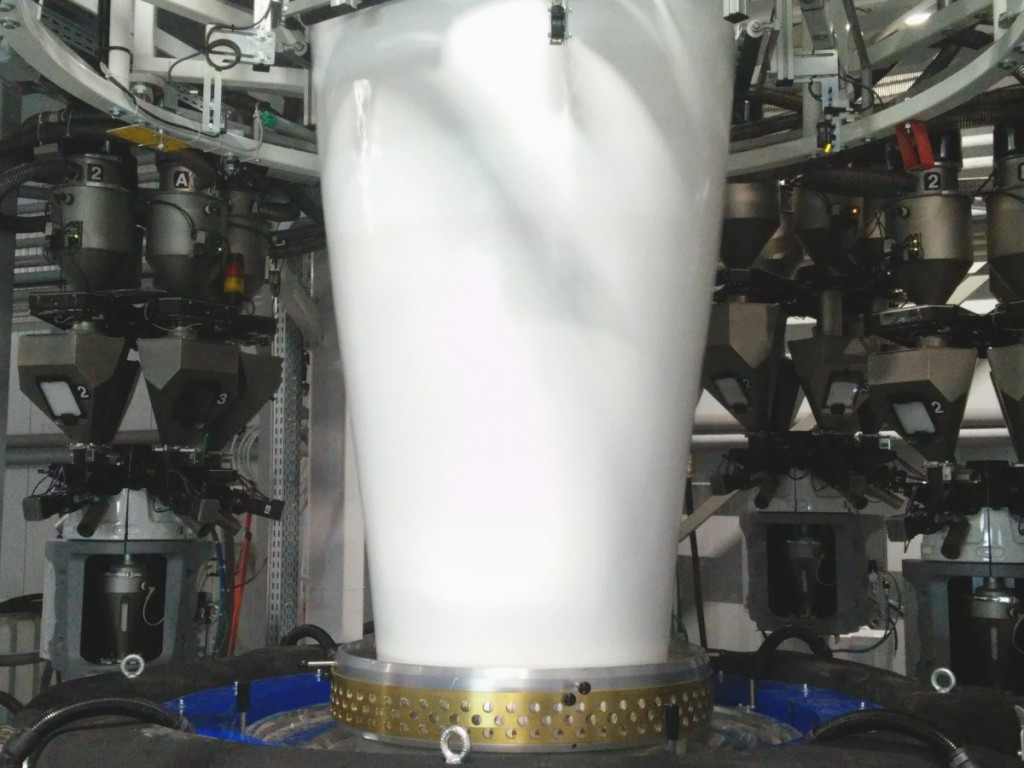

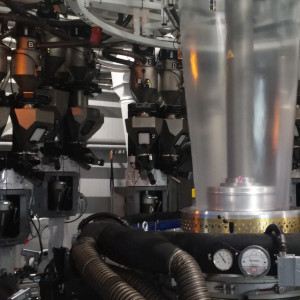

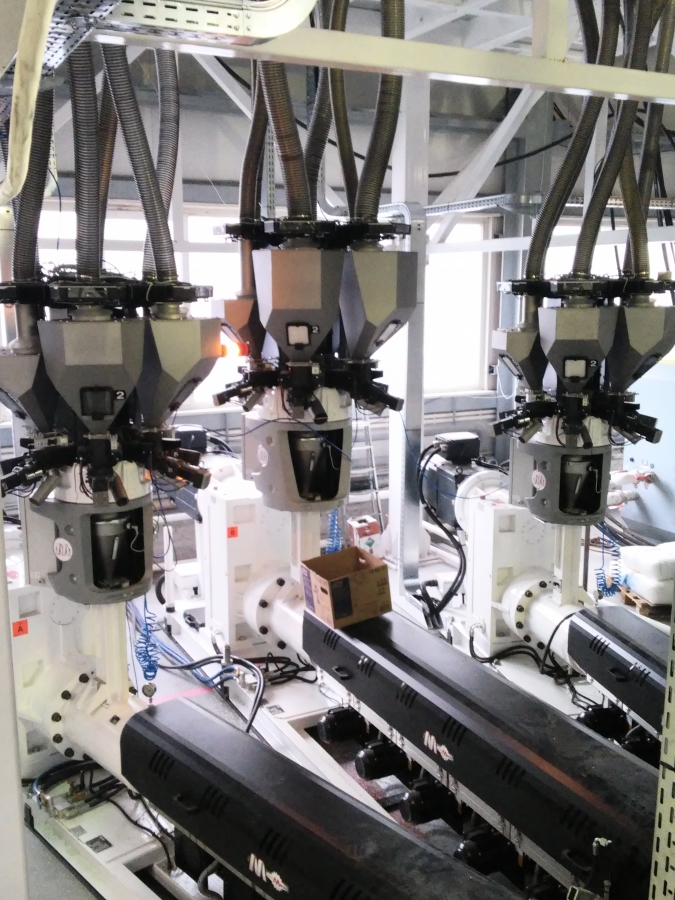

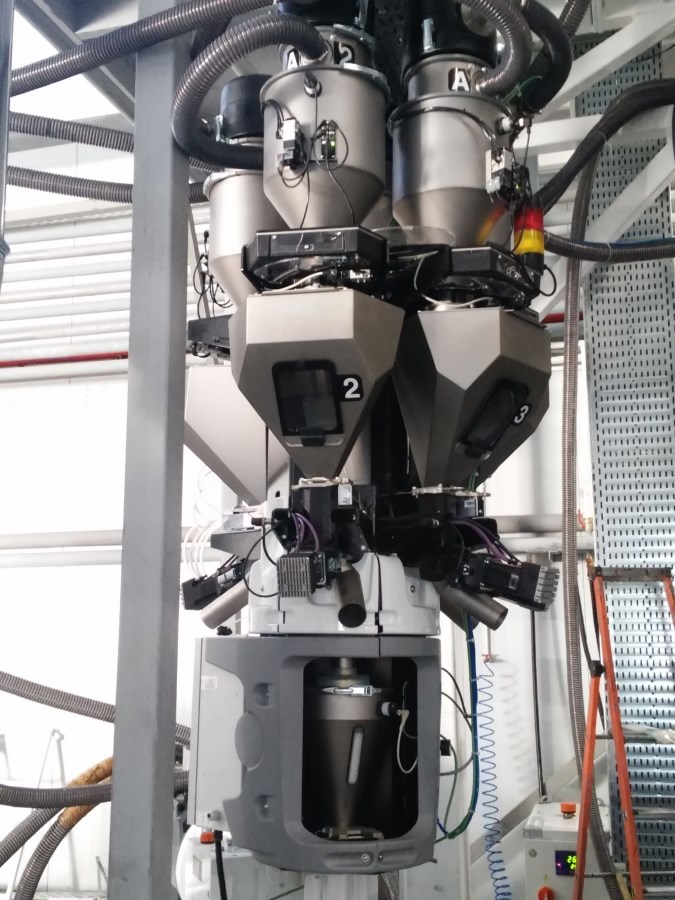

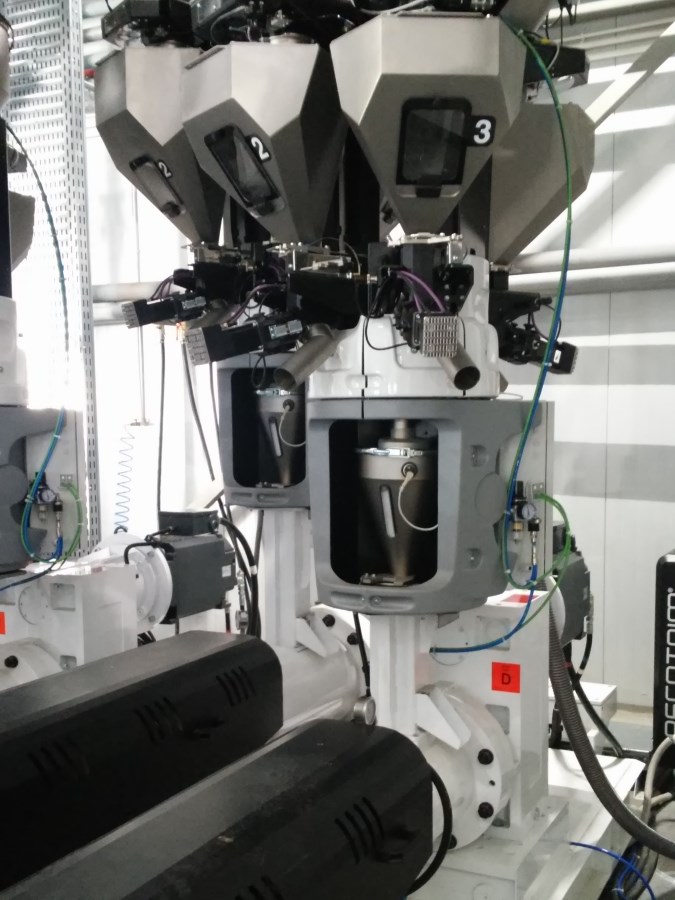

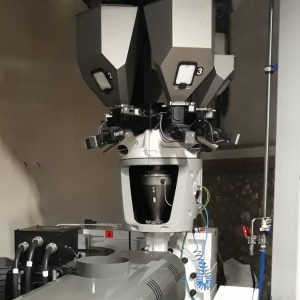

  • On the throat of the processing machine

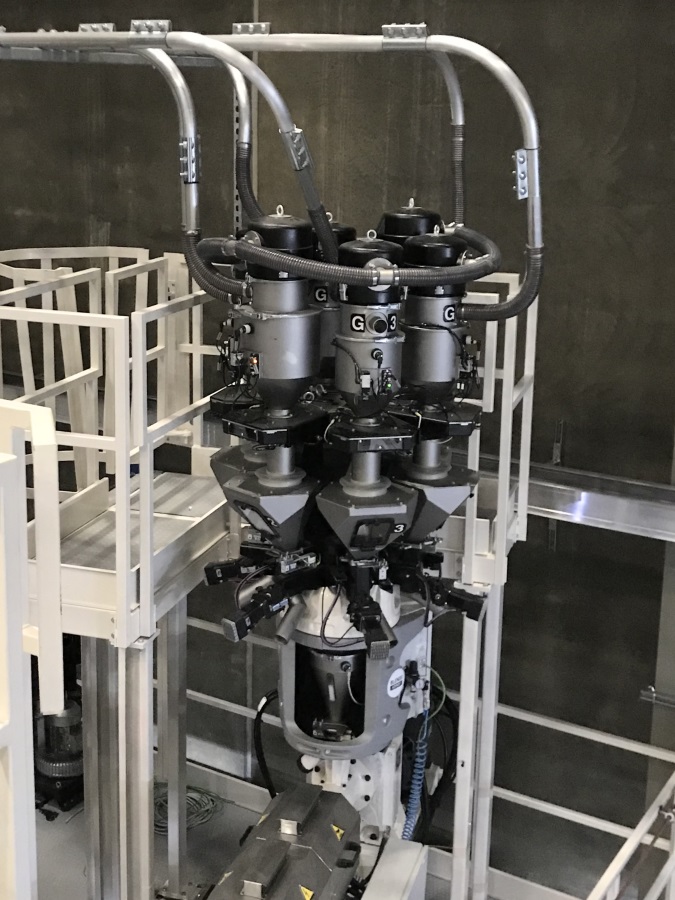

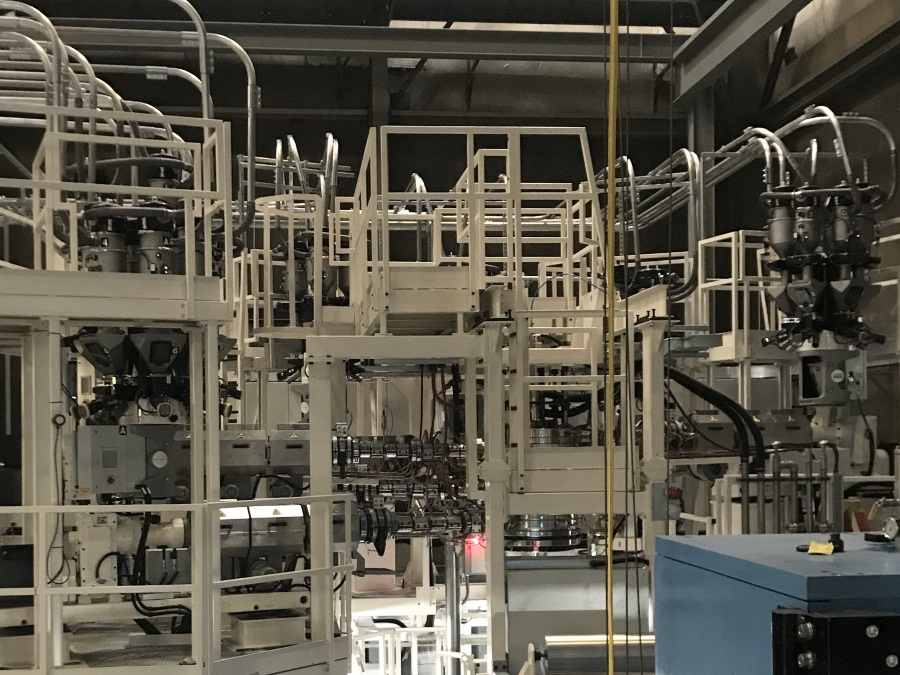

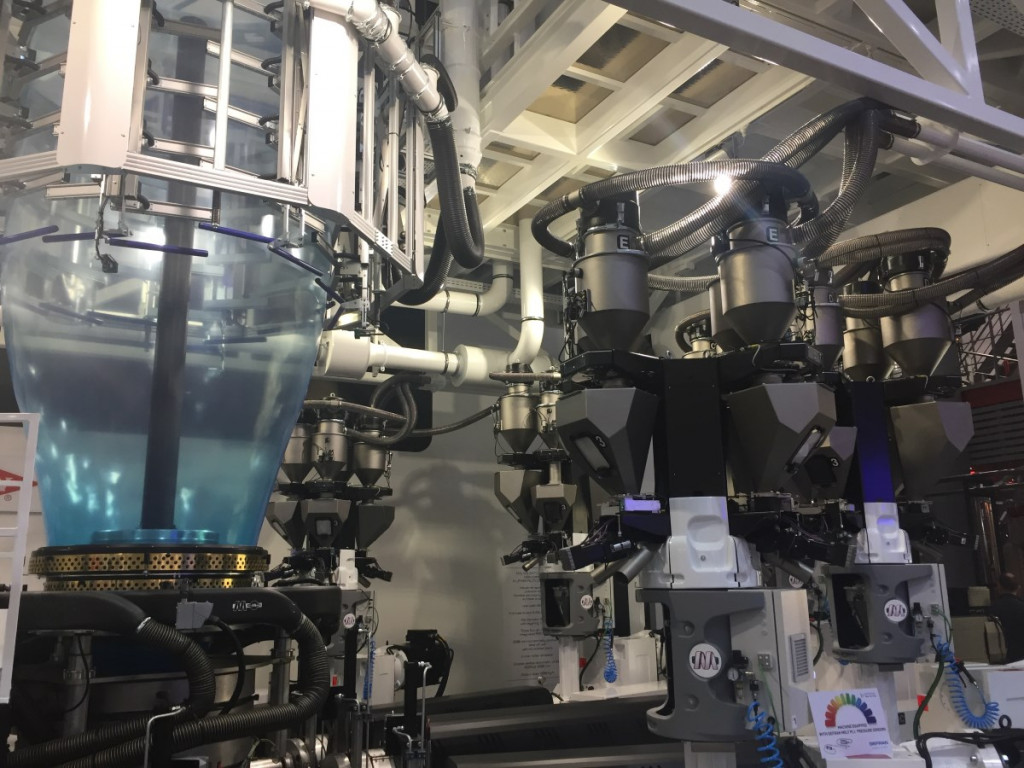

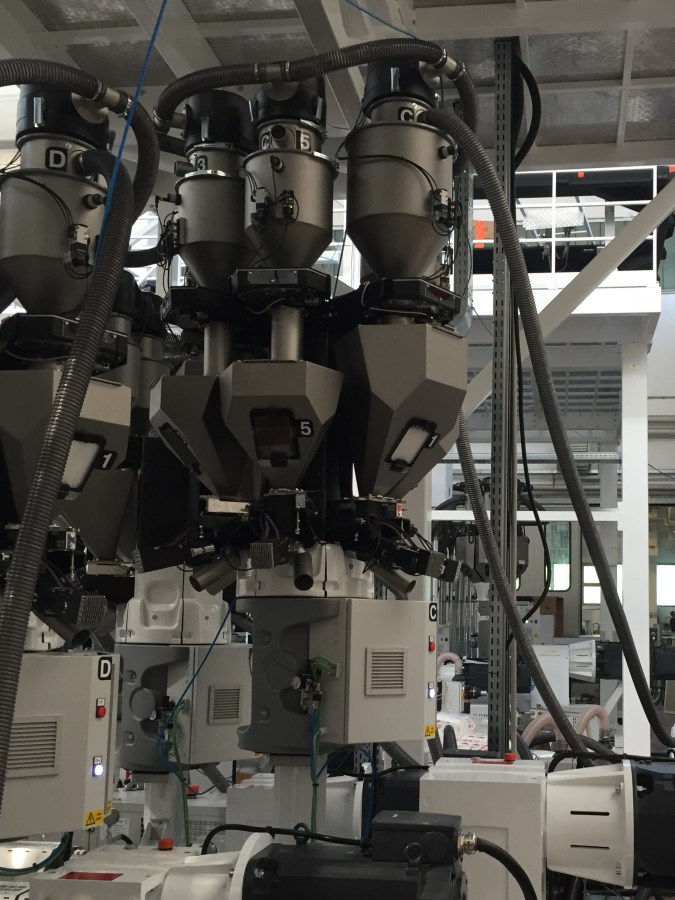

  • On a mezzanine, to feed by gravity the supply hopper of the processing machine

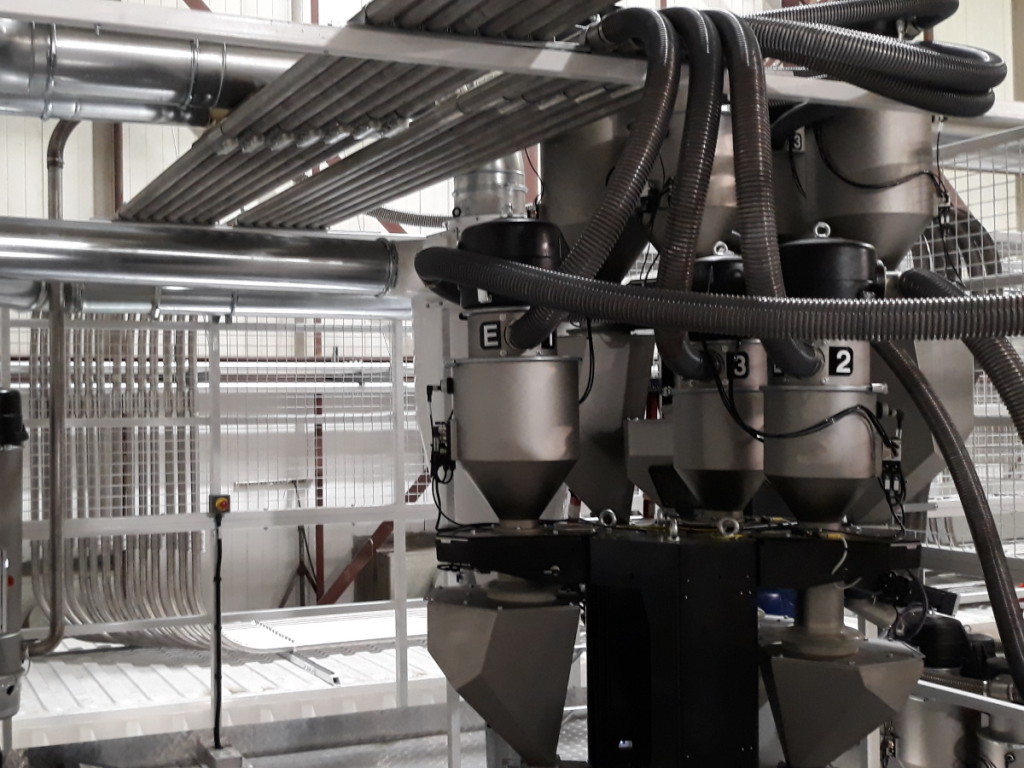

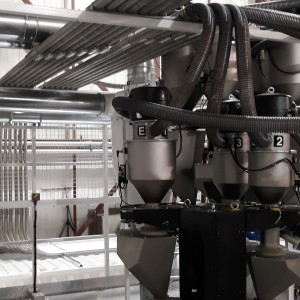

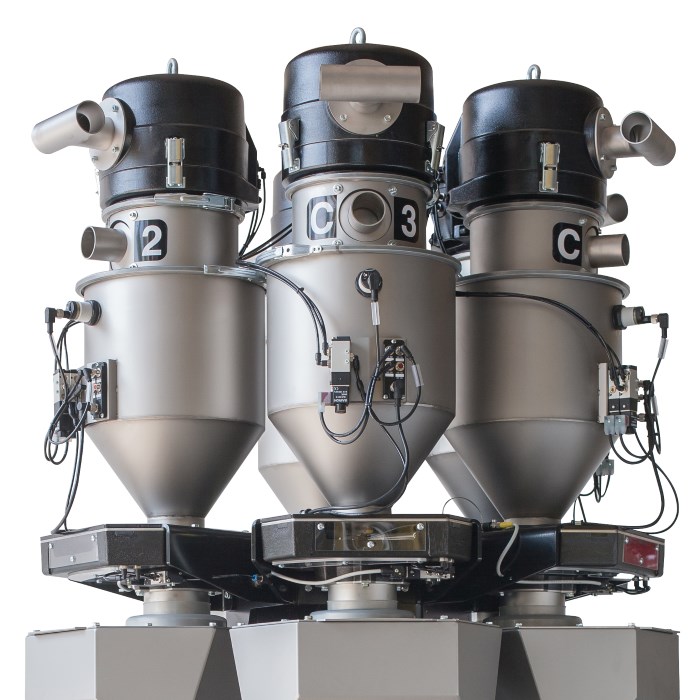

BLENDO ADROIT SMART CONVEY

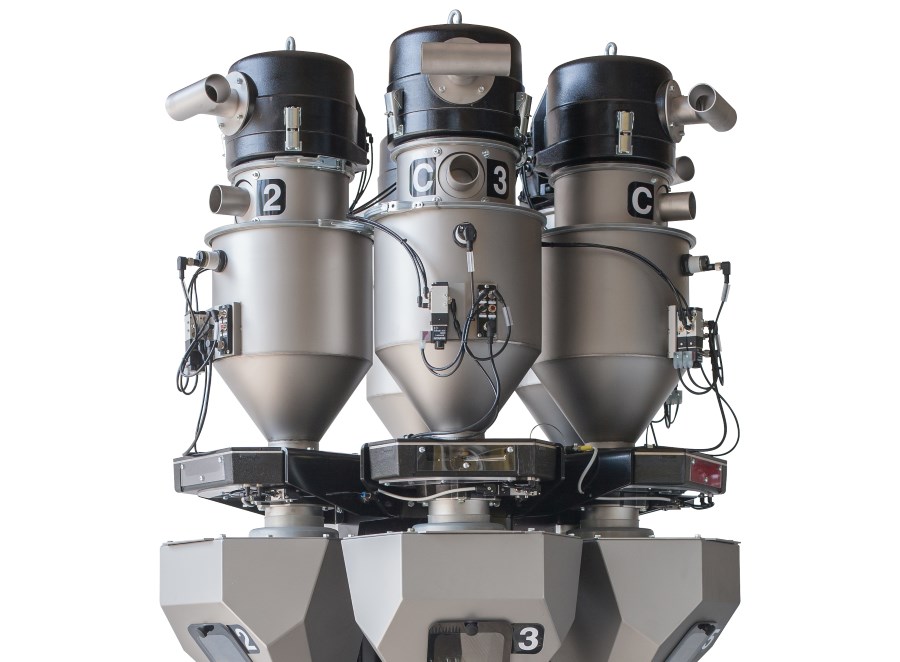

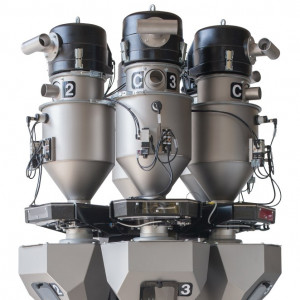

Integrated loading system control (SmartConvey)

Fully automated loading system control, easy operated by the same interface used for gravimetric blenders. One or more vacuum pumps to serve more than one receivers whose association can be set through configuration. All receivers linked to the same pump are served in turn, according to a priority sequence automatically assigned. Loading active control to reduce ingredient at minimum on changeover

tronchetto_magn_p

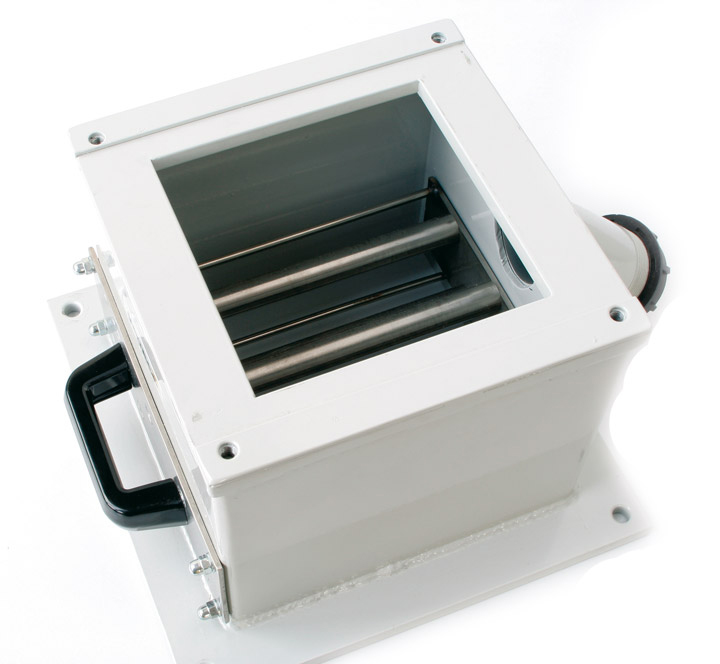

Extruder throat adapter with magnets

  • Extractable grate magnets

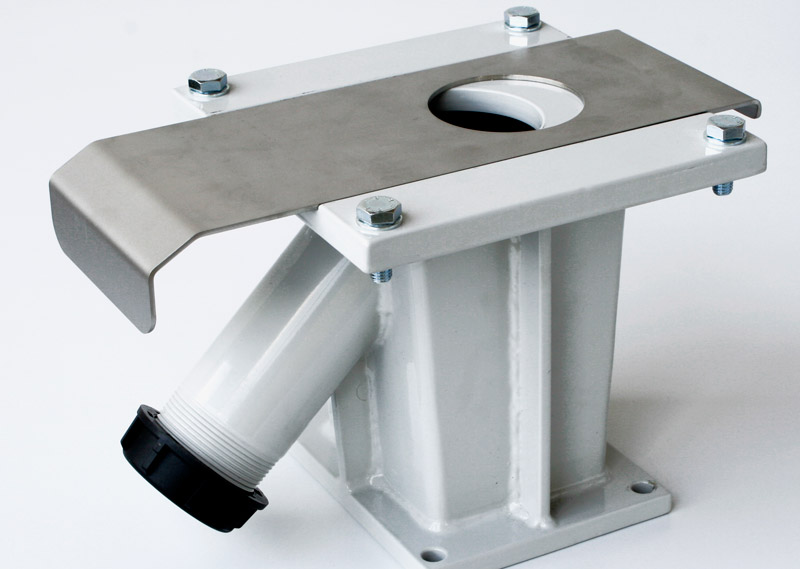

tronchetto

Extruder throat adapter

  • Custom made with drain spout and manual slide gate

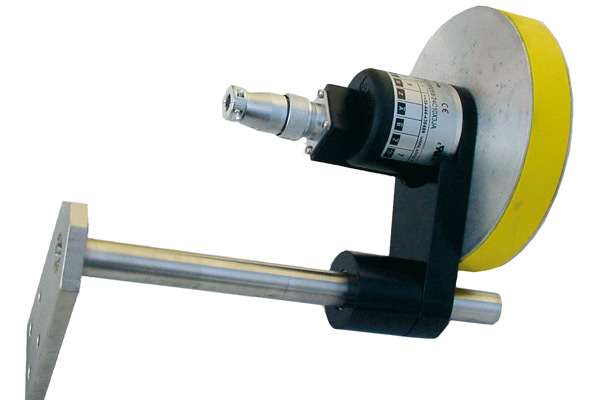

Encoder-kit

Encoder kit

  • Required when yield control is supplied, for line speed measurement.
tramoggia

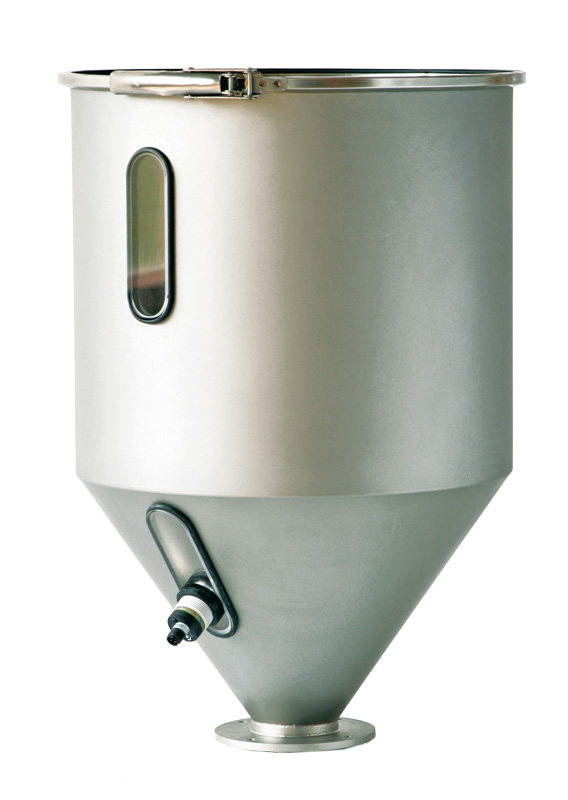

Pre-storage hoppers

  • Also available for mezzanine mounting.

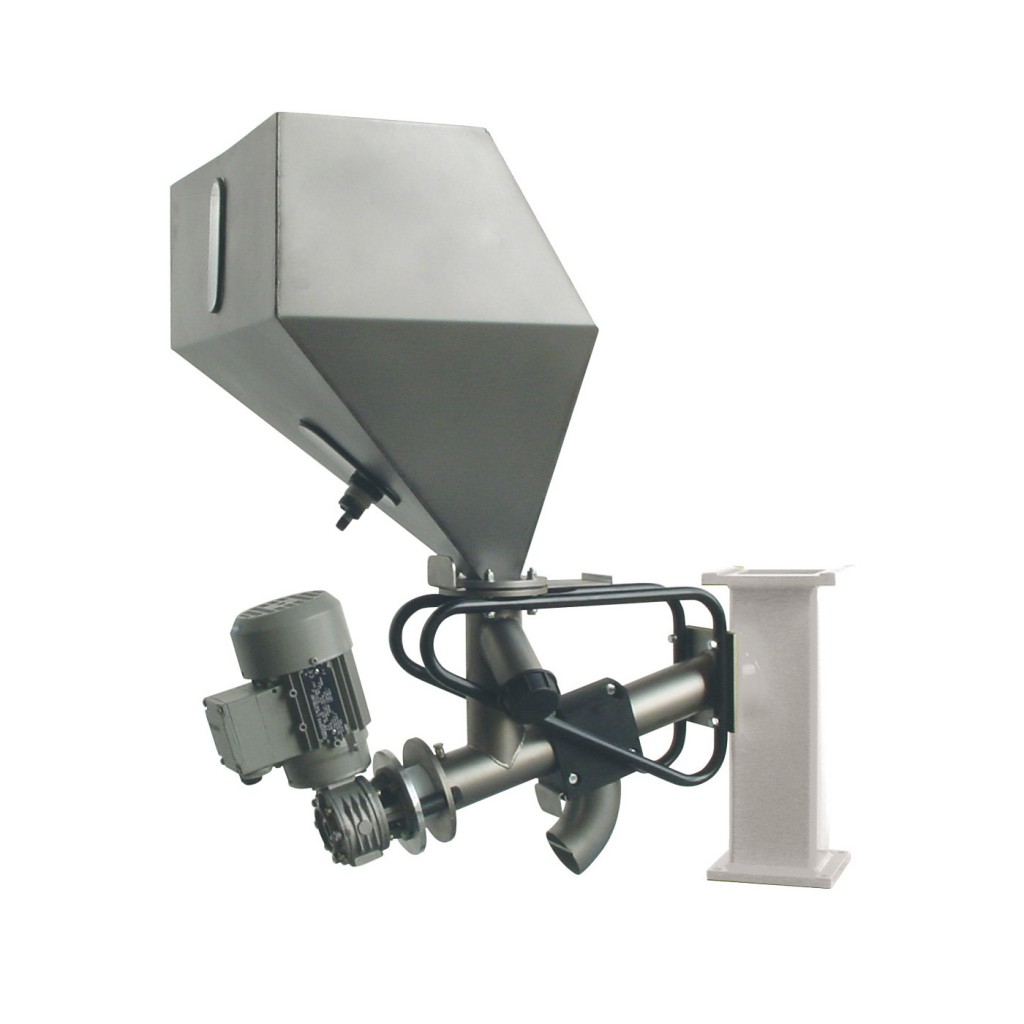

DOTECO - DOSO-ST

SIDE COMPONENT DOSING

  • Volumetric feeder for additives designed to be mounted on a neck riser, between the processing machine feed hopper and the extruder throat.

MORE INFORMATION

networking

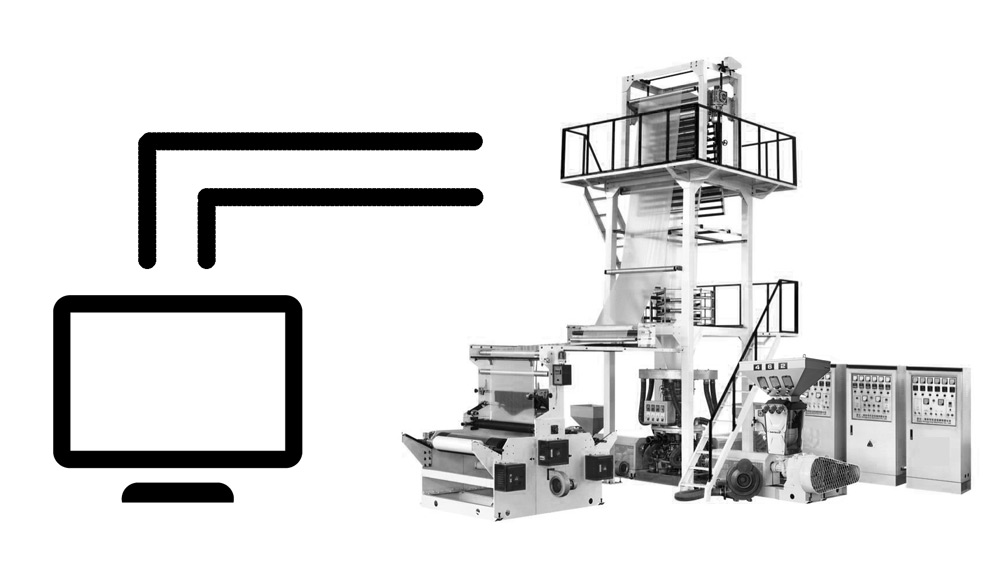

WIDE RANGE OF NETWORKING OPTIONS FOR REMOTE CONTROL AND DATA ACQUISITION

  • OPC via Ethernet (one entry-point)
  • OPC via CanBus (one entry-point or multi entry-point)
  • ModBus TCP/IP (one entry-point)
  • RS485/422 ModBus (one entry-point or multi entry-point)
  • Profibus (one entry-point or multi entry-point)
  • CanBus (one entry-point or multi entry-point)
  • Profinet (one entry-point)
  • Ethernet I/P (one entry point)
